  6. Watertight Pin & Sleeve Inlet, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

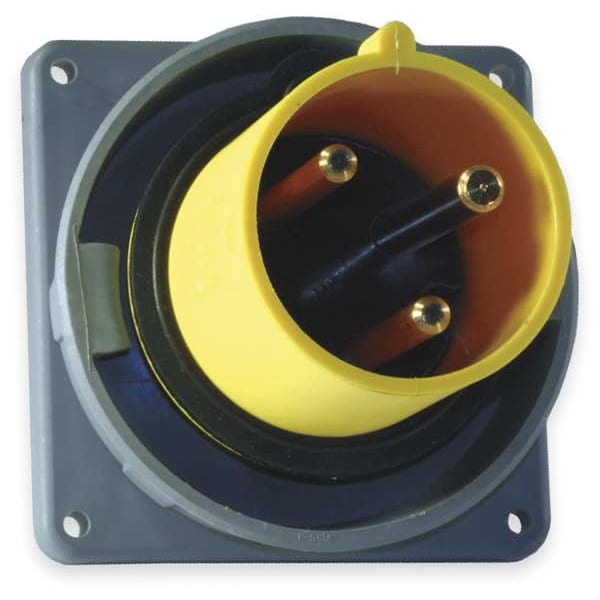

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow HBL360B4W - main

Watertight Pin & Sleeve Inlet, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

  • Mfr # HBL360B4W

  • Zoro # G0637533

product price:  $442.80
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL360B4W
Zoro #
G0637533
UPC #
783585403724
Country of Origin
United States

Dimensions

Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Flange Diameter
3.46 in
Face Diameter
2.97 in
Cord Size
8 to 2 AWG
Wire Size
#8 AWG to #2 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
60 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Body Material
Zytel 101 Nylon
Material
Thermoplastic
Shrouded
Yes
Insulation Material
Thermoplastic
Flange Type
Flanged
Switch Rated
Yes
Market
Industrial
Compatible with Series
HBL Heavy Duty
Maximum Operating Temperature
75 Degrees C
Housing Material
Polybutylene Terephthalate
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees C
Housing Material Grade
Zytel 101
Product Type
Watertight IEC Device
Retainer Material
High-Impact Thermoset
Temp. Rise
30°C
Flammability
UL 94 HB or Better
Screw Material
300 Stainless Steel
Dielectric Strength
3000V AC
Gasket Material
Neoprene
Weight
1.75 lb
Service
Standard
Flange Material
Zytel 101 Nylon
Operating Temp.
-40 to 75°C
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
High Ampacity Watertight Connections
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Wattage
7500
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Series
HBL Heavy Duty
Environmental Conditions
Watertight
Material - Mounting Hardware
Screw Mounting
Insulation
Insulated Body
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 60A and 125V AC, suitable for use in industrial settings. Rated for 60A and 125V AC, this single-phase device features a flanged design with screw terminal wire connections, suitable for #8 to #2 AWG conductors. Constructed from Zytel 101 nylon and thermoplastic materials; rated IP67 per IEC 60309-1 for ingress protection. It provides moisture resistance and withstands harsh operating conditions with an IP67 ingress protection rating.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: 60A, 125V AC single-phase

  • Gasketed sealing ring; rated IP67 per IEC 60309-1

  • Material: Body, flange, and housing made from Zytel 101 nylon; gasket material is neoprene

  • Wire Connection Type: Pressure terminal screws compatible with #8 to #2 AWG wire sizes

  • Flange Design: Flanged mounting with face diameter of 2.97 in and flange diameter of 3.46 in

  • Temperature Range: Rated for operation between -40°C to +75°C (no mechanical impact)

  • Circuit Protection: Raised collar surrounds each phase pin; insulated body construction

  • Standards Compliance: CSA Certified (File LR280C), UL Classified/IEC 60309-1 & -2, UL Listed (File E146032)

  • Horsepower Rating: Rated up to 2 hp applications; switch rated for current interrupting at full load
