Shop HUBBELL WIRING DEVICE-KELLEMS

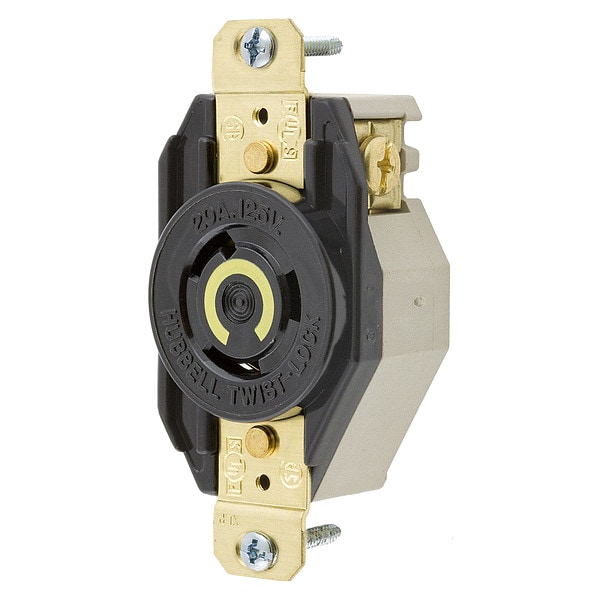

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2310

  • Zoro # G2380323

product price:
$
32.00
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2310
Zoro #
G2380323
UPC #
783585235509
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Weatherproof
Mounting Type
Flush Mount
Material
Nylon/Thermoplastic Polyester
Special Features
For Wallplate or Weatherproof Cover with A 1.60 in Opening, Corrosion Resistant
Grade
Industrial
IP Rating
IP20
Wiring Style
Standard
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Contact Material
Brass
Connection Orientation
Straight
For Location
Indoor
For Environment
Dry
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Number of Gangs
1
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
Includes
Mounting Hardware
Shrouded
No
Terminal Designations
Terminals identified in accordance with UL 498
Spring Material
.040" Brass
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Base Material
Nylon Polyester
Amps
20
UL 94 Flammability Rating
V-2

Description

• High-impact, abuse-resistant nylon face
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
