  6. Watertight Pin & Sleeve Plug, 16 A, 100/130V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

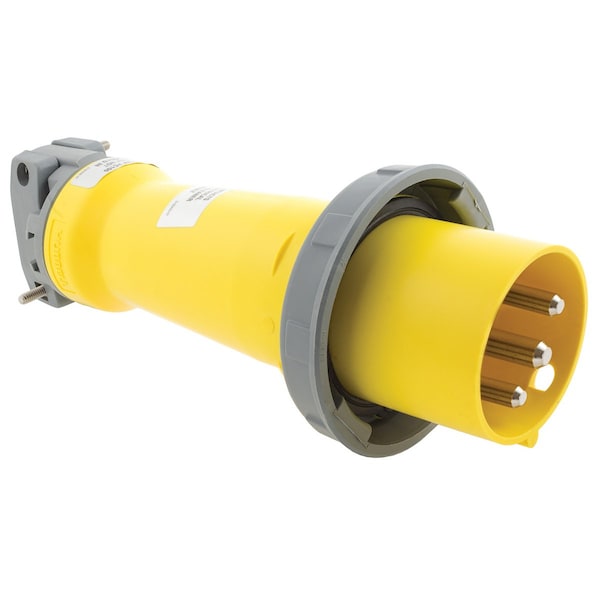

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 16 A, 100/130V AC, Single Phase, 2 Pole, IEC Grounding, Yellow HBL316P4W - main

Watertight Pin & Sleeve Plug, 16 A, 100/130V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

  • Mfr # HBL316P4W

  • Zoro # G100701736

product price:  $199.99
/ea
Free Shipping & Returns

Key Features

Current Rating
16 A
Voltage Rating
100/130V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL316P4W
Zoro #
G100701736
UPC #
783585403229
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
16 A
Voltage Rating
100/130V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Yellow
Cap Type
No Cap or Cover
Standards
UL Listed, CSA Certified File LR280C
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Grounding Style
IEC
Hub Style
Standard
Material
Composite
Application
High Ampacity Connections
Cord Type
All Portable
Material - Mounting Hardware
Cord Mounted
Style
Standard Service
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2
Series
HBL Heavy Duty
NEMA Enclosure Rating
Not Rated

Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male Plug, 16A 100-130V, 2-Pole 3-WireGrounding, Terminal Screws, Yellow , Watertight
