  6. Watertight Pin & Sleeve Plug, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange

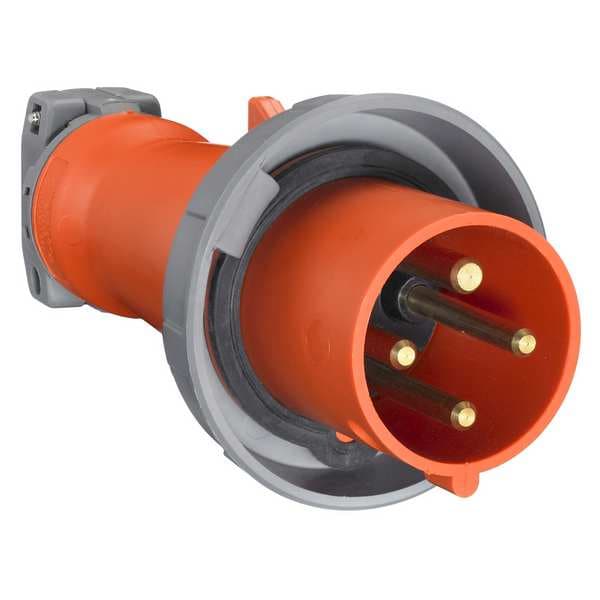

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange HBL420P12W - main

Watertight Pin & Sleeve Plug, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange

  • Mfr # HBL420P12W

  • Zoro # G0738525

product price:  $210.60
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL420P12W
Zoro #
G0738525
UPC #
783585404349
Country of Origin
United States

Dimensions

Overall Length
7.01 in
Maximum Wire Size
10 AWG
For Maximum Cable Diameter
0.83 in
For Minimum Cable Diameter
0.33 in
Minimum Wire Size
14 AWG

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Orange
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal
Switch Rated
No
Housing Material
Non-Metallic
NEMA Enclosure Rating
4X
Horsepower Rating
2 hp
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
Hub Style
Standard

Description

The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. This 3-pole, 4-wire plug is rated for 20A at 125/250V AC and features a rugged non-metallic housing made from Zytel 801 nylon. It uses screw terminals for conductor attachment and includes a gasketed sealing ring; rated IP67.


Key Features of the HUBBELL IEC Pin & Sleeve Plug:

  • Current/Voltage Rating: Rated for 20 amps at 125/250V AC single phase

  • Pole/Wire Configuration: 3 poles, 4 wires; grounded with IEC grounding style

  • Body/Housing Material: Housing material: Zytel 801 nylon

  • Watertight Design: Gasketed sealing ring; rated IP67

  • NEMA Enclosure Rating: NEMA 4X enclosure rating

  • Cable Accommodation: Accepts cable diameters from 0.33 in to 0.83 in; supports wire sizes from #14 AWG to #10 AWG

  • Temperature Range: Operates between -40°C and +75°C maximum temperature

  • Horsepower Rating: Maximum circuit horsepower rating: 2 hp

  • Shrouded Pins: Shrouded pins

  • Wire Connection Type: Uses screw terminals for conductor attachment

  • Standards Compliance: CSA Certified C22.2 No.182.1, UL E146032, UL IEC60309-1 listed product
