Plugs and Receptacles
- Mfr # 460P9WLEV
- Zoro # G422587063
product price:Â
$
481.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Blue
Maximum Wire Size
2 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 460P9WLEV
- Zoro #
- G422587063
- UPC #
- 78477901625
- Country of Origin
- Mexico
- Voltage Rating
- 250V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- IP Rating
- IP66, IP67, IP68, IP69K
- Housing Color
- Blue
- NEMA Enclosure Rating
- 12, 3R, 4X, 6P
- Power Indicating Light
- No
- Series
- HBL
- Hazardous Location Specification
- Not Rated
- Reverse Service
- No
- Housing Material
- Nylon
- Item
- Pin and Sleeve Plug
- For Environment
- Industrial
- For Location
- Outdoor
- Features
- Front Housing Features Screwless Assembly
- Market
- Industrial
- Standards
- CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, NSF, UL 1682, UL 1686
- Horsepower Rating
- 7 1/2 hp
- Current Rating
- 60 A
- Grounding
- Grounded
- UL 94 Flammability Rating
- V-0
- Resistance Properties
- Corrosion Resistant
- Wire Connection Type
- Screw Terminals
Description

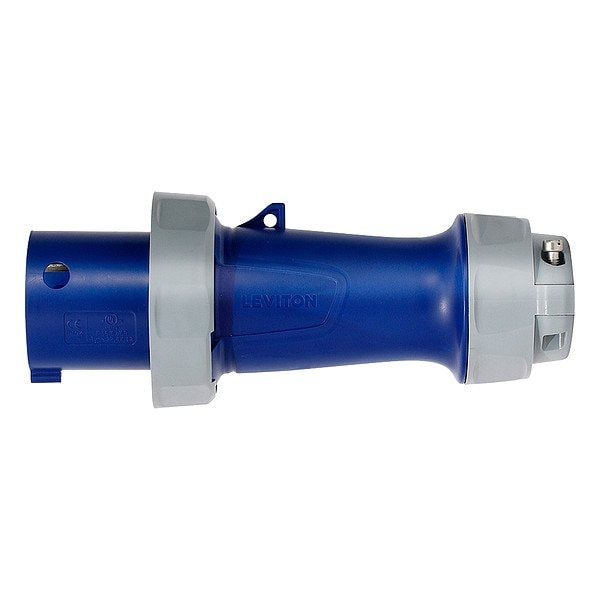

Pin and Sleeve Plug, Current Rating 60 A, Hazardous Location Specification Not Rated, Horsepower Rating 7 1/2 hp, Housing Color Blue, IP Rating IP66, IP67, IP68, IP69K, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Face Diameter 4.22 in, Grounding Grounded, Grounding Style IEC, Housing Material Nylon, Maximum Wire Size 2 AWG, Minimum Wire Size 6 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P, Outside Diameter 4.22 in
