  6. Watertight Pin & Sleeve Receptacle, 20 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

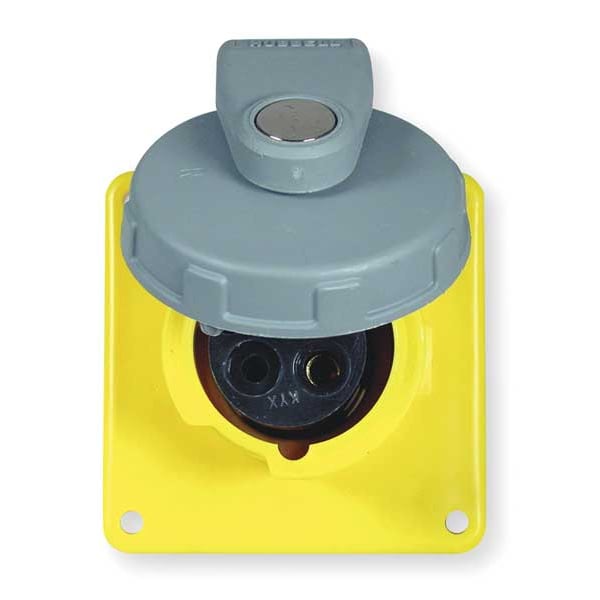

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 20 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow HBL320R4W - main

Watertight Pin & Sleeve Receptacle, 20 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

  • Mfr # HBL320R4W

  • Zoro # G1986363

product price:  $157.95
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL320R4W
Zoro #
G1986363
UPC #
783585403427
Country of Origin
United States

Dimensions

Face Diameter
2.85 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Cord Size
14 to 10 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 101 Nylon
Switch Rated
No
Features
Color Coded
Body Material
Zytel 101 Nylon
Grounding Style
IEC
Maximum Operating Temperature
75 Degrees C
Flange Type
Flanged
Market
Industrial
Reverse Service
No
Housing Material Grade
Zytel 101
Number of Gangs
1
Power Indicating Light
No
Housing Material
Thermoplastic
Connection Orientation
Straight
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 hp
Flange Material
Zytel 101 Nylon
Flammability
UL 94 HB or Better
Service
Standard
Gasket Material
Neoprene
Retainer Material
High-Impact Thermoset
Temp. Rise
30°C
Product Type
Watertight IEC Device
Screw Material
300 Stainless Steel
Dielectric Strength
3000V AC
Weight
0.9 lb
Operating Temp.
-40 to 75°C

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Corrosion-resistant self-closing gasketed cover
• Insulated non-metallic housing
• Color coded housings for easy identification
