  6. Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

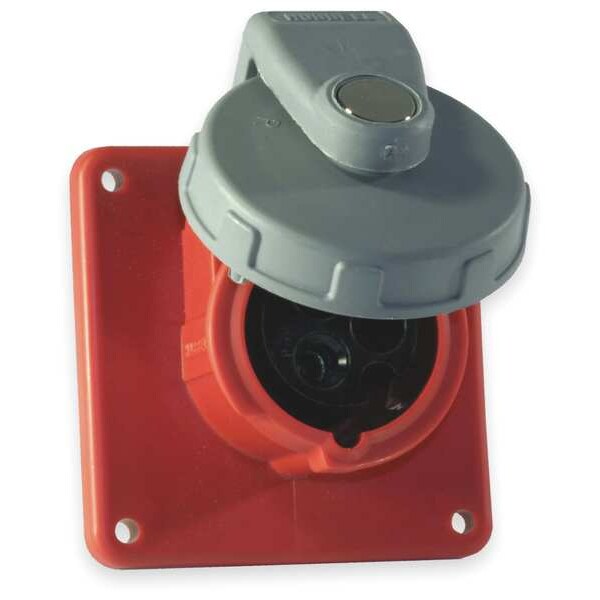

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red HBL330R7W - main

Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

  • Mfr # HBL330R7W

  • Zoro # G0283647

product price:  $273.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL330R7W
Zoro #
G0283647
UPC #
783585403632
Country of Origin
United States

Dimensions

Face Diameter
3.6 in
Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Cord Size
12 to 8 AWG
Wire Size
#12 AWG to #8 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Body Material
Zytel 101 Nylon
Features
Color Coded
Body Material - Pin and Sleeve
Zytel 101 Nylon
Grounding Style
IEC
Material
Thermoplastic
Reverse Service
No
Horsepower Rating
7 1/2 hp
Number of Gangs
1
Shrouded
Yes
Power Indicating Light
No
Housing Material
Thermoplastic
Market
Industrial
Housing Material Grade
Zytel 101
Flange Type
Flanged
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Connection Orientation
Straight
Service
Standard
Gasket Material
Neoprene
Retainer Material
High-Impact Thermoset
Screw Material
300 Stainless Steel
Flange Material
Zytel 101 Nylon
Dielectric Strength
3000V AC
Flammability
UL 94 HB or Better
Product Type
Watertight IEC Device
Temp. Rise
30°C
Weight
1.35 lb
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Style
Standard Service
Material - Mounting Hardware
Screw Mounting
Wattage
14400
Industry Standard(s)
CSA StandardC22.2 No. 182.1 UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Series
HBL Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Corrosion-resistant self-closing gasketed cover
• Insulated non-metallic housing
• Color coded housings for easy identification
