  6. Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

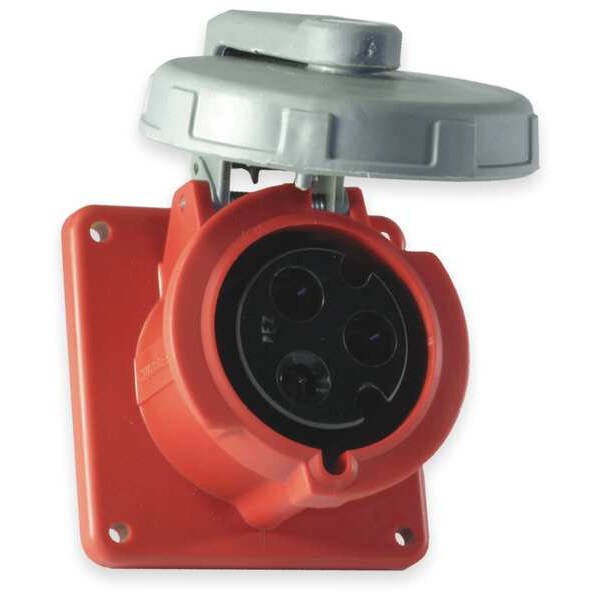

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red HBL360R7W - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red

  • Mfr # HBL360R7W

  • Zoro # G0340234

product price:  $405.00
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL360R7W
Zoro #
G0340234
UPC #
783585403878
Country of Origin
United States

Dimensions

Minimum Wire Size
8 AWG
Face Diameter
4.15 in
Maximum Wire Size
2 AWG
Cord Size
8 to 2 AWG
Display Size
Standard Sized Product
Wire Size
#8 AWG to #2 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 101 Nylon
Switch Rated
No
Grounding Style
IEC
Features
Color Coded
Body Material - Pin and Sleeve
Zytel 101 Nylon
Material
Thermoplastic
Maximum Operating Temperature
75 Degrees C
Connection Orientation
Straight
Housing Material
Thermoplastic
Market
Industrial
Shrouded
Yes
Power Indicating Light
No
Housing Material Grade
Zytel 101
Reverse Service
No
Flange Type
Flanged
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
7 1/2 hp
Number of Gangs
1
Dielectric Strength
3000V AC
Product Type
Watertight IEC Device
Screw Material
300 Stainless Steel
Service
Standard
Flange Material
Zytel 101 Nylon
Weight
2.35 lb
Temp. Rise
30°C
Retainer Material
High-Impact Thermoset
Gasket Material
Neoprene
Flammability
UL 94 HB or Better
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Listed To Standard UL1682
Wattage
28800
Series
HBL Heavy Duty
Material - Mounting Hardware
Screw Mounting
Style
Standard Service
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Receptacle is an electrical device rated for 60A and 480V AC, suitable for use in industrial environments. Rated for 60A and 480V AC, this single-phase receptacle features a flanged design with pressure terminal screw connectivity; compatible with wire sizes from #8 AWG to #2 AWG. Constructed with Zytel 101 nylon housing and thermoplastic materials; rated for impact resistance and moisture protection per product specifications.


Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

  • Current/Voltage Rating: 60A, 480V AC single phase

  • IP67 rating per IEC 60309-1 (moisture resistance)

  • Body Material: Zytel 101 nylon with thermoplastic housing

  • Cord Size Compatibility: Accepts #8 to #2 AWG conductors

  • Screw Terminal Connections: Pressure terminal screws compatible within specified ranges of conductor size

  • Operating Temperature Range: -40°C to 75°C as specified by manufacturer

  • Flanged Design: For standard service mounting applications

  • Spring-loaded cap with gasketed cover as part of the enclosure design when not in use

  • Color Coded Housing: Red color aids identification of voltage rating (480V)

  • Standards Compliance: Listed to UL1682, CSA C22.2 No.182.1 & No.0.17; meets IEC requirements
