  11. RS-485 Remote I/O Module, M-7011

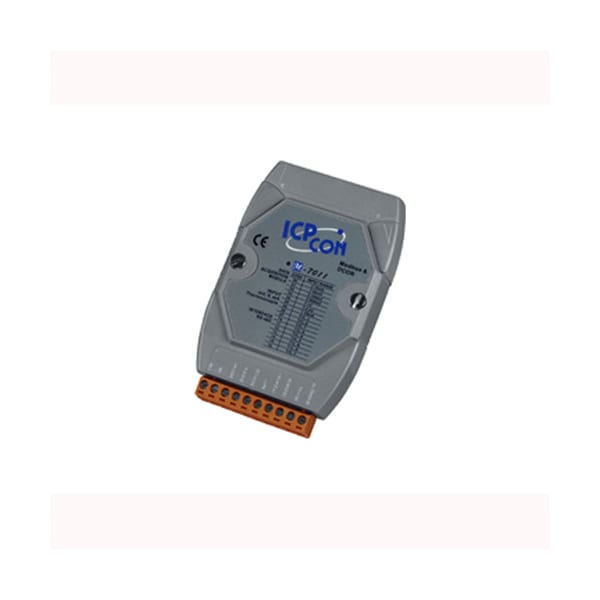

Icp Das RS-485 Remote I/O Module, M-7011 M-7011 - main

RS-485 Remote I/O Module, M-7011

  • Mfr # M-7011

  • Zoro # G200491698

product price: $440.99
/ea
Free Shipping & Returns

Key Features

Output Type
Sink, Open Collector to 30V
Output Load
30mA max. per channel
Input Channels
1
Watchdog
Yes, Module, Communication (Programmable)
Baudrate
1200 ~ 115200 bps
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M-7011
Zoro #
G200491698
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Band Width
5.24Hz
Min. Pulse Width
1 ms

Details

Output Type
Sink, Open Collector to 30V
Output Load
30mA max. per channel
Input Channels
1
Watchdog
Yes, Module, Communication (Programmable)
Baudrate
1200 ~ 115200 bps
Storage temperature
-30°C to 75 °C
Normal Mode Rejection
100dB
Channels (Digital Output)
2
Zero Drift
±0.5uV/°C
Logic Level 0
+1V max
Interface
RS-485, Modbus RTU
Span drift
25ppm/°C
Interface Format
N, 8, 1
4 1/2 digits
for I-7011D
Resolution
16-bit
Input Impedance
20M Ohms
Sampling Rate
10 Samples/ Second
Operating temperature
-25°C to 75 °C
Common Mode Rejection
150dB
Intra-module Isolation, Field to Logic
3000 VDC
Power dissipation
300 mW
Max Input Frequency
50Hz
Input Type
±15mV, ±50mV, ±100mV,± 500mV , ±1V,± 2.5V; ± 20mA(requires optional external 125 ohm resistor); Thermocouple( Type J, K, T, E, R, S, B, N, C)
Humidity
5 to 95%, non-condensing
Support Modbus and DCON Protocol
Yes
Channels (Digital Input)
1
Input
+10 to +30 Vdc
Accuracy
±0.05%
1 LED
as Power/ Communication indicator
Power Consumption
0.9 W (I-7011) / 1.5W(I-7011D)
Logic Level 1
+3.5V to 30V

Description

One Channel Thermocouple Input Module
