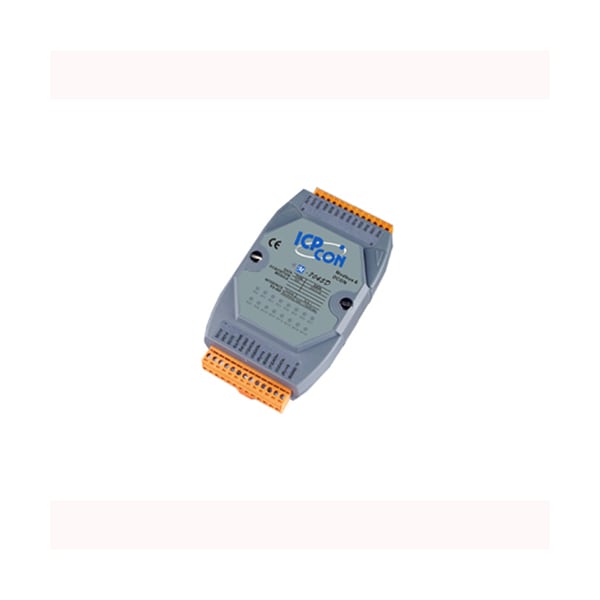

RS-485 Remote I/O Module, M-7045D

  • Mfr # M-7045D

  • Zoro # G200491636

product price:  $419.99
/ea
Free Shipping & Returns

Key Features

Reverse Polarity Protection
Yes
Surge (IEC 61000-4-5)
±3 kV for Power Line
Consumption
1.5 W
I/O LED Indicators
Yes, 16 LEDs as Digital Output Indicators
System LED Indicator
Yes, 1 as Power/Communication Indicator
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-7045D
Zoro #
G200491636
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Dimensions (L x W x H)
123 mm x 72 mm x 35 mm

Details

Reverse Polarity Protection
Yes
Surge (IEC 61000-4-5)
±3 kV for Power Line
Consumption
1.5 W
I/O LED Indicators
Yes, 16 LEDs as Digital Output Indicators
System LED Indicator
Yes, 1 as Power/Communication Indicator
Storage temperature
-40°C ~ +85°C (-40°F ~ +185°F)
EFT (IEC 61000-4-4)
±4 kV for the 16 DO channels and Power, ±2 kV for the RS-485 Port
Interface
RS-485
Dual Watchdog
Yes, Module (1.6 Seconds), Communication (Programmable)
Input Range
10 ~ 30 VDC
Operating temperature
-25°C ~ +75°C (-13°F ~ +167°F)
Installation
DIN-Rail or Wall Mounting
Humidity
10 ~ 95% RH, Non-condensing
Baud Rate
1200 to 115200 bps
Intra-module Isolation, Field-to-Logic
3750 VDC
Interface Format
N, 8, 1
ESD (IEC 61000-4-2)
±4 kV Contact for each Terminal
Protocol
Modbus RTU, DCON (for M-7045 series)

Description

M-7045 with LED display
