Shop IDEAL

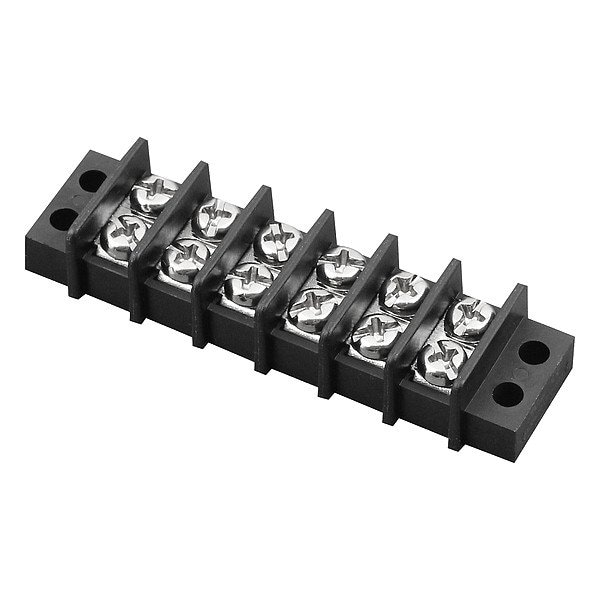

BarrierTerminalStrip, 20A, 14AWGMax, 300V

  • Mfr # 89-306

  • Zoro # G722414038

product price:  $34.69
/ea
Sold in multiples of 10 for $346.90

Key Features

Housing Material
Thermoplastic
Center Spacing
3/8 in
Current
20 A
Cover Included
No
Standards
CSA LR15364, UL Recognized E82048
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
89-306
Zoro #
G722414038
UPC #
783250893065
Country of Origin
China

Dimensions

Overall Height
0.5 in
Termination Screw Size
#6-32
For Maximum Wire Size
14 AWG
Overall Width
2.62 in
For Minimum Wire Size
22 AWG
Wire Rope Length
2.9 in

Details

Housing Material
Thermoplastic
Center Spacing
3/8 in
Current
20 A
Cover Included
No
Standards
CSA LR15364, UL Recognized E82048
Minimum Operating Temperature
-40 Degrees F
Torque
9 in-lb
Termination Screw Finish
Nickel Plated
Terminal Material
Steel
Housing Color
Black
Termination Screw Material
Steel
Number of Rows
2
UL 94 Flammability Rating
V-0
Screw Type
Phil-Slot
Maximum Voltage
300 V
Termination Style
Screw
Item
Barrier Terminal Strip
Number of Poles
6

Description

Barrier Terminal Strip, Center Spacing 3/8 in, Current 20 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 14 AWG, Maximum Voltage 300 V, Number of Poles 6, Number of Rows 2, Overall Height 0.5 in, Overall Length 2.9 in, Overall Width 2.62 in, Cover Included No, Housing Color Black, Housing Material Thermoplastic, Maximum Operating Temperature 260 Degrees F, Minimum Operating Temperature -40 Degrees F, Screw Type Phil-Slot, Standards CSA LR15364, UL Recognized E82048
