  9. Clamp Meter, Dual Backlit, 600 A A, 1.4 in (36 mm) Jaw Capacity

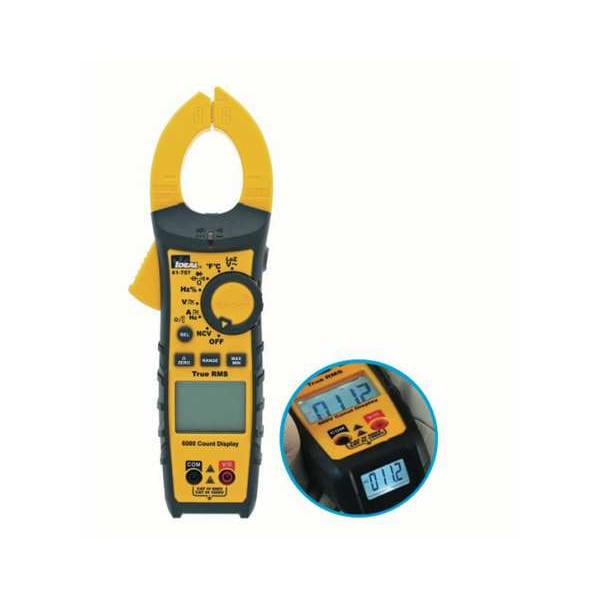

Ideal Clamp Meter, Dual Backlit, 600 A A, 1.4 in (36 mm) Jaw Capacity 61-757 - main

Clamp Meter, Dual Backlit, 600 A A, 1.4 in (36 mm) Jaw Capacity

  • Mfr # 61-757

  • Zoro # G304416085

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V AC
Max. Ohms
60 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61-757
Zoro #
G304416085
UPC #
783250513581
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Battery Size
(3) AAA

Details

Item
Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V AC
Max. Ohms
60 megaohm
Jaw Capacity
1.4 in (36 mm)
Temp. Range
-40 Degrees to 1832 Degrees F
Safety Rating
CAT III 1000V, CAT IV 600V
Display
Dual Backlit
Jaw Opening
1.4 in
Max. DC Amps
600 A
Max. AC Volts
1,000 V AC
Auto Power Off
Yes
Bar Graph
No
Diode Test
Yes
Frequency Counter
10 Hz to 999.9 KHz
Memory
Hold; Max/Min; Relative; Zero; Range; Selectable Auto Power Off
Capacitance
6 mF
AC Current Accuracy
+/-2.0% + 5 Digits
Special Features
Built-in Probe Tip Holder and Hanging Strap Clip Allows Safer, Easier Measurement, Over Molded Industrial Design Enhances Gripping and Allows the Meter to Withstand a 6.6-Foot (2 M) Drop, Patented Tightsight Display Eliminates the Need to Bend or Twist Conductors or Place Your Head Near or in the Panel and Allows You to Easily Read the Bottom Display When Taking Measurements
Battery Type
(3) AAA
Thermometer Type
Type K Thermocouple
Audible Continuity
Yes
Standards
CE, cULs, RCM
Counts
6,000
Data Hold
Yes
AC Response
TRMS
Auto Ranging
Yes
Non-Contact Voltage Detector
Yes
Operating Temp.
32 Degrees to 122 Degrees F
Includes
Batteries, K-Type Thermocouple, Soft Case, Test Leads
AC Response Calculation
TRMS
Bar Graph Included
No
Maximum AC Current Measurement
600 A
Maximum Capacitance Measurement
6 mF
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)
Maximum AC Voltage Measurement
1,000 V
Jaw Style
Clamp-Jaw
Maximum DC Voltage Measurement
1,000 V
Maximum Resistance Measurement
60 megaohm
Maximum DC Current Measurement
600 A
Display Type
Dual Backlit

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 1,000 V, IP Rating IP40, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature, Intrinsically Safe No, Data Logging No, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 1.4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
