Shop IDEAL

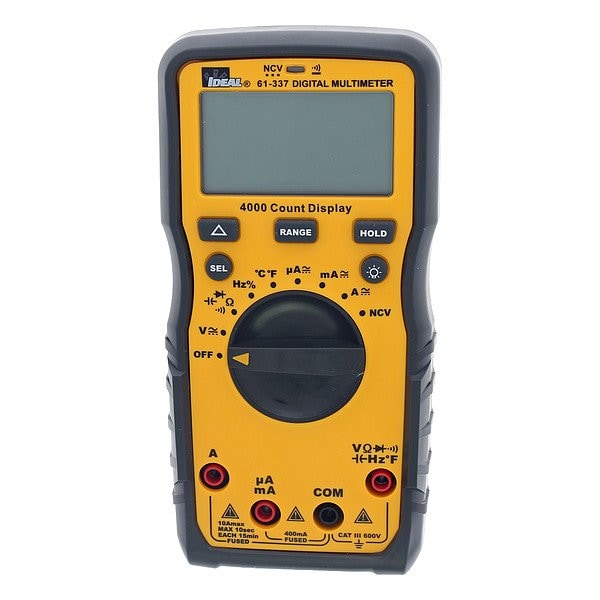

DigitalMultimeter, TRMS, 10A, 600VAC/DC

  • Mfr # 61-337

  • Zoro # G522768577

product price:
$
72.74
/ea
Sold in multiples of 4 for $290.96

Key Features

Minimum Operating Temperature
32 Degrees F
Basic DC Voltage Accuracy
+/-1.3%
Weight
0.68 lb
Resistance Measurement Accuracy
+/-1.5%
Voltage Units
V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
61-337
Zoro #
G522768577
UPC #
783250810512
Country of Origin
China
Minimum Operating Temperature
32 Degrees F
Basic DC Voltage Accuracy
+/-1.3%
Weight
0.68 lb
Resistance Measurement Accuracy
+/-1.5%
Voltage Units
V
Temperature Measurement Accuracy
+/-2.0%
Maximum AC Voltage Measurement
600 V
Special Features
Backlit Display, Allows for Safer/Faster Work in Poorly Lit Environments, Built-In Probe Tip Holders and Hanging Strap Clip Allows Safer, Easier Measurement, Lead Position Warning and Open Fuse Indication
Duty Cycle
Duty Cycle Test Included
Resistance Measurement Resolution
0.1 ohm
Minimum Storage Temperature
14 Degrees F
IP Rating
Not Rated
Frequency Measurement Resolution
0 Hz
Maximum Temperature Measurement
1,832 Degrees F
Capacitance Measurement Resolution
0.1 nF
Data Hold
Yes
Minimum Frequency Measurement
10 Hz
Diode Test
Yes
AC Voltage Measurement Resolution
0.1 mV
Capacitance Measurement Accuracy
+/-5%
Includes
Batteries, Type K Thermocouple, Soft Carrying Case, Test Leads
Basic DC Current Accuracy
+/-2.5%
Battery Voltage
1.5 V
Instrument Counts
6,000
Minimum AC Current Measurement
400 uA
AC Current Measurement Resolution
0.1 uA
CAT Safety Rating
CAT III 600V
Minimum Resistance Measurement
400 ohm
Maximum DC Voltage Measurement
600 V
Battery Access
Yes
Maximum AC Current Measurement
10 A
Minimum DC Voltage Measurement
400 mV
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Minimum DC Current Measurement
400 uA
Fuse Access
Yes
Auto Power Off
Yes
Auto Ranging
Yes
Minimum Capacitance Measurement
400 nF
Maximum Frequency Measurement
10 kHz
Includes Auto Sensing
No Auto Sensing Included
AC Response Calculation
TRMS
Maximum Resistance Measurement
40 megaohm
Minimum AC Voltage Measurement
400 mV
DC Current Measurement Resolution
0.1 uA
Minimum Temperature Measurement
-40 Degrees F
Basic AC Voltage Accuracy
+/-1.3%
Display Type
Backlit LCD
Maximum DC Current Measurement
10 A
Basic AC Current Accuracy
+/-2.5%
Current Units
A
Audible Continuity
Yes
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F, Temperature K
Maximum Capacitance Measurement
4,000 uF
Bar Graph Included
No
Batteries Included
Yes
Frequency Measurement Accuracy
+/-0.5%
Maximum Storage Temperature
140 Degrees F
Standards
cULus
DC Voltage Measurement Resolution
0.1 V
Item
Digital Multimeter
Temperature Measurement Resolution
1 Degrees F

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.3 Percent, Basic DC Voltage Accuracy +/-1.3 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.5 Percent, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000
