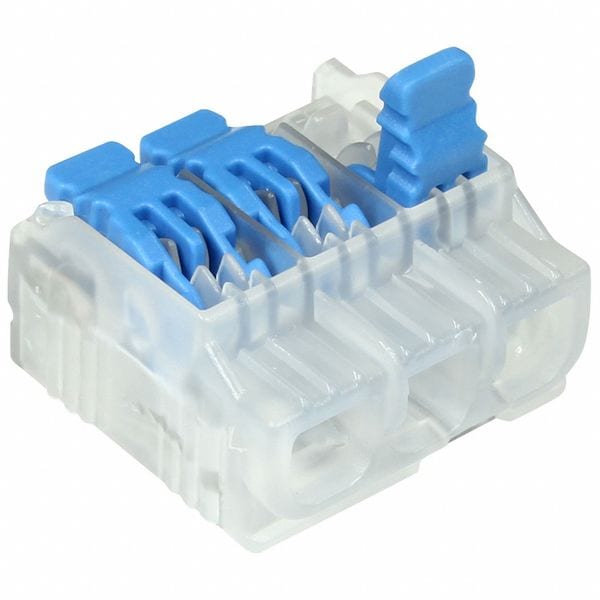

Lever Wire Connector, 12 AWG Max, 3 Port, Blue, Polycarbonate Insulation, 600 V, 20 A, 350 PK
Mfr # 30-35L23J
Zoro # G606458523
product price: $177.99
/pk 350, $0.51/ea
Free Shipping & Returns
Key Features
Type
Lever
Color
Blue
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Insulation Material
Polycarbonate
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
30-35L23J
Zoro #
G606458523
UPC #
783250568093
Country of Origin
Austria
Dimensions
Maximum Wire Size
12 AWG
Minimum Wire Size
24 AWG
Overall Length
0.78 in
Overall Height
0.41 in
Strip Length
7/16 in
For Minimum Wire Size - Stranded
24 AWG
For Minimum Wire Size - Solid
24 AWG
For Maximum Wire Size - Solid
12 AWG
Overall Width
0.77 in
For Maximum Wire Size - Stranded
12 AWG
Details
Item
Lever Wire Connector
Type
Lever
Color
Blue
Insulation Material
Polycarbonate
Maximum Voltage
600 V
Current
20 A
Maximum Operating Temperature
221 Degrees F
Number of Ports
3
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CE Certified, cUL, IEC/EN, RoHS, UL
Material
Copper
For Conductor Material
Copper
Special Features
Two-Stage Lock for a Secure Connection
Description
Lever Wire Connector, Color Blue, For Conductor Material Copper, For Minimum Wire Size - Stranded 24 AWG, For Maximum Wire Size - Stranded 12 AWG, Housing Material Polycarbonate, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Overall Height 0.41 in, Overall Length 0.78 in, Overall Width 0.77 in, Connector Type Lever, UL 94 Flammability Rating V-2, Number of Ports 3, RoHS Compliant Yes, Standards CE, cUL, IEC/EN, RoHS, UL, Contact Material Copper, Current 20 A
