  11. Twist-On Wire Connector, 8 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 100 PK

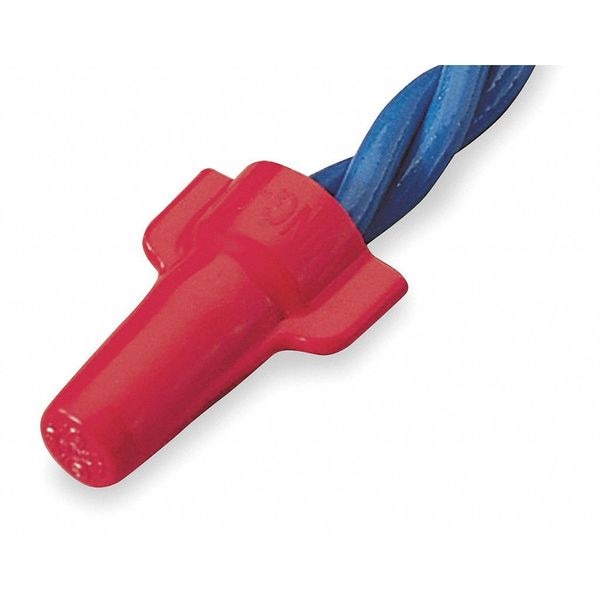

Ideal Twist-On Wire Connector, 8 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 100 PK 30-452 - main

Twist-On Wire Connector, 8 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 100 PK

  • Mfr # 30-452

  • Zoro # G903667949

product price: $15.29
/pk 100, $0.15/ea

Key Features

Type
Twist-On
Minimum Wire Size
18 AWG
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 18 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-452
Zoro #
G903667949
UPC #
783250304523
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Width
0.94 in
Height
1.23 in
Outside Diameter
0.6 in
Strip Length
1/2 in
Overall Width
0.92 in
For Minimum Wire Size - Solid
18 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Red
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 18 AWG
Maximum Wire Combination
(4) 10 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Application
General Purpose
Standards
CSA Certified, UL Listed
Series
452
For Conductor Material
Copper
Maximum Conductors
6
Special Features
Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations
Material
Steel
Twist-On Style
Wing
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 6 AWG, Minimum Single Wire Size 16 AWG
