  9. Voltage Tester, 600VAC, 600VDC

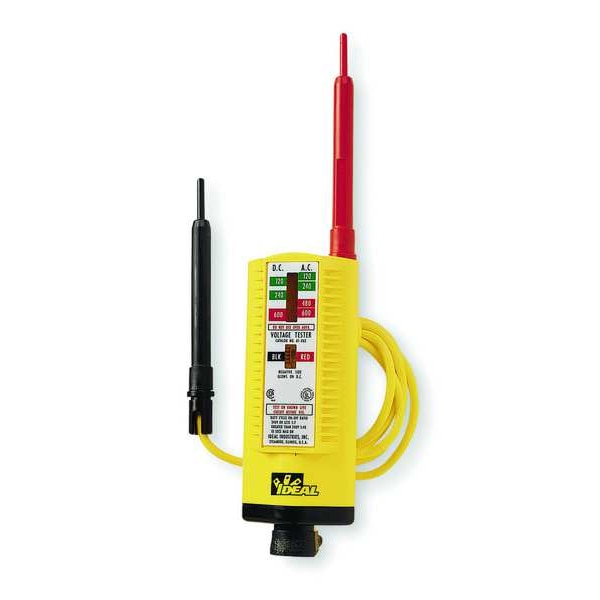

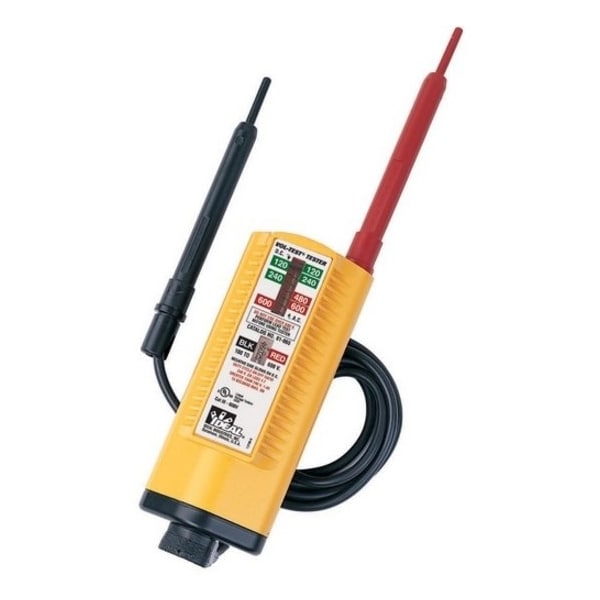

Ideal Voltage Tester, 600VAC, 600VDC 61-065 - main

Voltage Tester, 600VAC, 600VDC

  • Mfr # 61-065

  • Zoro # G3257362

product price: $67.92
/ea

Key Features

Battery Type
(4) LR44
Safety Rating
Cat III 600V
AC Voltage Range
100 to 600
Vibrates When Voltage Present
Yes
Basic DC Accuracy
Relative Indication Only
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61-065
Zoro #
G3257362
UPC #
783250610655
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
2 yr
Cable Length
3 ft
Battery Size
LR44
Manufacturer Warranty Length
2 yr

Details

Item
Voltage Detector/Tester
Battery Type
(4) LR44
Safety Rating
Cat III 600V
AC Voltage Range
100 to 600
Vibrates When Voltage Present
Yes
Basic DC Accuracy
Relative Indication Only
Calibration Frequency
25 to 60 Hz
Display
(4) Neon Lamps
Low Impedance
Yes
Special Features
Autoswitching Voltage/Continuity Technology (Mfr. No. 61-076), Independent Solenoid and Electronic Circuitry Design Provides Back Up Voltage Indication for Added Safety, Replaceable Test Leads, Shielded Probe Tips, Ultrasonically Welded and O Ring Sealed for Added Durability, Vibration Mode with Indicator Movement
DC Polarity
Yes
DC Voltage Range
100 to 600
Includes
Standard Test Lead
Features
Dual Voltage Indication for Backup Safety, Rugged and Reliable, Low Impedance to Eliminate Ghost Voltages, Replaceable Leads with Shielded Probe Tips (Iec61010-031 Compliant)
Standards
cUL
Testing Functions
AC Voltage, Continuity, AC Current, DC Polarity, DC Voltage
Display Screen Type
No Display
Built-In Flashlight
No
Number of Batteries Required
1
Display Type
No Display
Tester Type
Voltage Detector/Tester
Minimum AC Voltage Measured
100 V
CAT Safety Rating
CAT III 600V
Alert Type
Light, Vibration
Maximum DC Voltage Measured
600 V
Test Connection Type
Probe Tip
Maximum AC Voltage Measured
600 V
Includes Batteries
Yes
Power Source
Battery
Minimum DC Voltage Measured
100 V
Non-Contact
No

Description

Voltage Detector/Tester, Alert Type Light, Vibration, Built-In Flashlight No, CAT Safety Rating CAT III 600V, Cable Length 3 ft, Display Type No Display, Includes Standard Test Lead, Maximum AC Voltage Measured 600 V, Maximum DC Voltage Measured 600 V, Non-Contact No, Test Connection Type Probe Tip, Testing Functions AC Voltage, Continuity, AC Current, DC Polarity, DC Voltage
