Mcdonnell & Miller

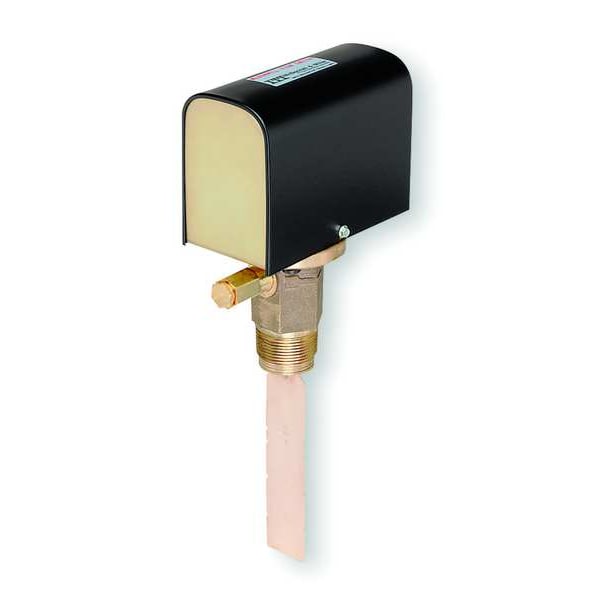

1-1/4" MNPT SPDT Snap Flow Switch 120/240VAC 7.7 gpm

product price: $597.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size (In.) 1-1/4 MNPT
  • Switch Type SPDT
  • Voltage 120/240VAC
  • Max. Pressure 300 psi
  • Max. Flow GPM 7.7 gpm
See all product information

Product Information

Dimensions

Connection Size (In.) 1-1/4 MNPT
Connection Size 1 1/4 in
For Pipe Size 1 1/4 in, 16 in

Details

Switch Type SPDT
Voltage 120/240VAC
Max. Pressure 300 psi
Max. Flow GPM 7.7 gpm
Type Industrial/Heavy-duty Liquid Flow
Min. Fluid Temp. (F) 32 Degrees F
Max. Pressure (PSI) 300 psi
Min. Flow Rate (GPM) 4.8 gpm
Wetted Materials Brass, Bronze, PTFE, S/S
Float Switch Contact Form SPDT
Switch Enclosure NEMA 1
Max. Fluid Temp. (F) 300 Degrees F
Item Flow Switch
Min. Ambient Temp. (F) 32 Degrees
Application Large Pipe Applications Including Heating and Hydronic Systems, Air-conditioning, Refrigeration and Process Work
Connection Type NPT
Media Temperature - Maximum 300 Degrees F
Flow Rate - Minimum 4.8 gpm
Media Temperature - Minimum 32 Degrees F
Flow Rate - Maximum 4.8 gpm
Ambient Temperature - Minimum 32 Degrees F
Wetted Material Brass, Bronze, PTFE, Stainless Steel
Housing Material Brass
Flow Switch Type Paddle
Ambient Temperature - Maximum 300 Degrees F
Set Point Configuration Adjustable
Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load)

Description

Flow Switch, Ambient Temperature - Maximum 300 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 22.2 A @ 240V (Locked Rotor), 3.7 A @ 240V (Full Load), 44.4 A @ 120V (Locked Rotor), 7.4 A @ 120V (Full Load), Flow Rate - Maximum 4.8 gpm, Flow Rate - Minimum 4.8 gpm, Flow Switch Type Paddle, For Pipe Size 1 1/4 in, 16 in, Housing Material Brass, Media Temperature - Maximum 300 Degrees F
