- MFR #
- KI5086
- Zoro #
- G7102252
- UPC #
- -
- Country of Origin
- United States
- Item

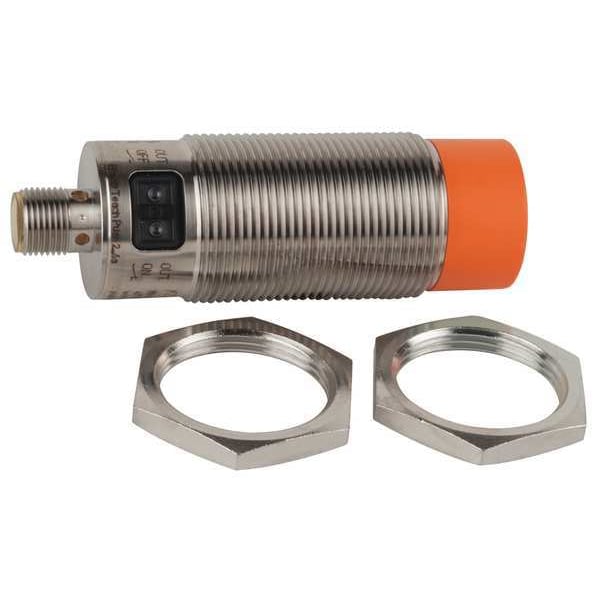

- Proximity Sensor
- Style
- Capacitive, Cylindrical
- Proximity Sensing Method
- Capacitive
- Body Material
- Stainless Steel
- Proximity Sensor Power Requirement
- 10 to 36V DC
- Electrical Connection
- M12
- Output Circuit Type
- NPN/PNP
- Output Circuit Number of Wires
- 3
- Sensing Face Shielding
- Unshielded
- Sensing Distance - Maximum
- 15 mm
- AC Voltage Rating
- Not Rated
- DC Voltage Rating
- 10-30V DC
- Output Circuit Contact Form
- NO/NC
- Standards
- EN 61000-4-2 ESD, EN 55011, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted
- Proximity Sensor Electrical Connection
- 4 Pin M12 Connector
- Proximity Sensor Operating Frequency
- 10 Hz
- IP Rating
- IP65, IP67
- Max. Current Load
- 100mA
- Description/Special Features
- Overload And Short-Circuit Protection, Yellow LED Output Indication
- Operating Temp. Range
- -13 Degrees to 176 Degrees F
- Includes
- (2) Lock Nuts
- Max. voltage drop switching output DC [V]
- 2.5
- Permanent current rating of switching output DC [mA]
- 100
- Overload protection
- yes
- Min. process cycle time [ms]
- 101
- Current consumption [mA]
- 18
- Reverse polarity protection
- yes
- Transmission type
- COM1 (4,8 kBaud)
- SDCI standard
- IEC 61131-9 CDV
- Switching frequency DC [Hz]
- 10
- IO-Link revision
- 1.1
- Items supplied
- lock nuts: 2
- Operating voltage [V]
- 10...30 DC; (10...36 DC (60°C))
- Thread designation
- M30 x 1.5
- Protection
- IP 65; IP 67
- Vibration resistance
- EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
- Display
- switching status 1 x LED, yellow
- Short-circuit proof
- yes
- Electronic lock
- yes
- Materials
- housing: stainless steel (1.4404 / 316L); pushbuttons: TPE-U; cover: PBT; LED window: PEI
- Teach function
- yes
- Switch point drift [% of Sr]
- -20...20
- Protection class
- III
- Hysteresis [% of Sr]
- 1...15
- Shock resistance
- EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z)
- Electrical design
- PNP/NPN; (automatic load detection PNP/NPN)
- Profiles
- Smart Sensor
- Sensing range [mm]
- 15
- Mounting
- non-flush mountable
- Housing
- threaded type
- Communication interface
- IO-Link
- SIO mode
- yes
- Ambient temperature [°C]
- -25...80
- MTTF [years]
- 622
- Measuring principle
- capacitive
- EMC
- EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
- Measuring principle
- capacitive
- Ambient temperature [°C]
- -25...80
- Operating Temperature - Maximum
- 176 Degrees F
- Output Circuit Current - Maximum
- 100 mA
- Operating Temperature - Minimum
- -13 Degrees F
- Body Stainless Steel Grade
- 316L
- Output Circuit Voltage - Maximum
- 2.5 V DC
- Number of Pins
- 4
- Sensing Method
- Capacitive
- Includes Indicator Lights
- Indicator Lights Included
- Features
- Empty/Full State Pushbutton
- Switching Frequency
- 10 Hz
- Electrical Installation Type
- Direct Connector
