Product Information
MFR #
PN2209
Zoro #
G6531935
UPC #
094720828013
Country of Origin
Germany
Details
Item

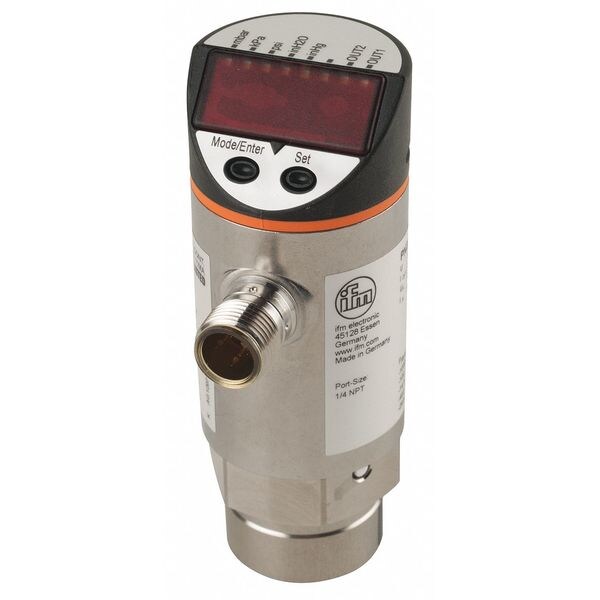

Fluid and Air Pressure Sensor
Range
-14.5 psi Vac to 14.5 psi
Analog Output
4 to 20mA or 0 to 10V DC
Control Output
NPN or PNP Open Collector
On/Off Setting
Programmable
Max. Pressure
725 psi
Power Required
18 to 32V DC
Process Connection
1/4 in FNPT
Electrical Connection
4 Pin M12
Display
4 Digit Alpha Numeric LED
Operating Temp. Range
13 Degrees to 176 Degrees F
IP Rating
IP65
Wetted Materials
Stainless Steel
Housing Material
Stainless Steel
Standards
CE
Pressure Connection Type
1/4" FNPT
Description
Fluid and Air Pressure Sensor, Range -14.5 psi Vac to 14.5 psi, Analog Output 4 to 20mA or 0 to 10V DC, Control Output NPN or PNP Open Collector, Programmable On/Off Setting, Power Required 18 to 32V DC, Process Connection 1/4 in FNPT, Electrical Connection 4 Pin M12, Display 4 Digit Alpha Numeric LED, Wetted Materials Stainless Steel, Housing Material Stainless Steel, Operating Temp. Range 13 Degrees to 176 Degrees F, IP Rating IP65, Max. Pressure 725 psi, Standards CE
