  11. Cordset, 4 Pin, Receptacle, Female

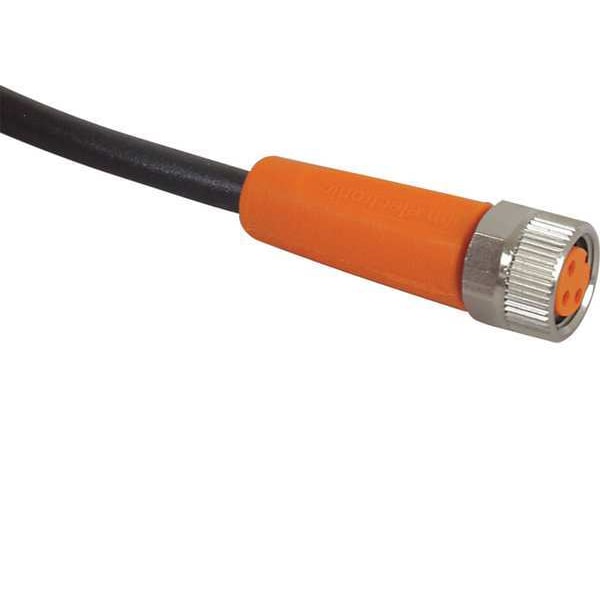

Ifm Cordset, 4 Pin, Receptacle, Female EVC151 - main

Cordset, 4 Pin, Receptacle, Female

  • Mfr # EVC151

  • Zoro # G8521055

product price: $22.59
/ea

Key Features

Jacket Material
TPU
End 1 Number of Pins
4
Cable Length
5 m
Wire Size
22 AWG
IP Rating
IP65, IP67, IP68, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EVC151
Zoro #
G8521055
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
5 m
Wire Size
22 AWG
Dimensions [mm]
10 x 10 x 31

Details

Item
Cordset
Jacket Material
TPU
End 1 Number of Pins
4
IP Rating
IP65, IP67, IP68, IP69K
Max. Voltage
50VAC/60VDC
Max. Amps
3A
Number of Conductors
4
Temp. Range
-25 Degrees to 90 Degrees C
End 1 Keyway
Single
Standards
cRUus Approval
End 2 Connection Type
Bare Wire
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
End 2 Gender and Plug End
Bare Wire
End 1 Connection Type
M8
End 1 Thread
M8
End 1 Gender and Plug End
Female Straight
Color
Black
For Use With
Harsh Industrial Environment
End 1 Number of Keyways
1
Cable Jacket Color
Black
Maximum Operating Temperature
176 Degrees F
Cordset Type
Single-Ended
Minimum Operating Temperature
-13 Degrees F
Cable Jacket Material
PUR
End 1 Mounting Orientation
Straight
End 1 Gender
Female
Number of Wires
4
Storage temperature [°C]
-25...55
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 3.7 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )
Max. current load total [A]
3
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Ambient temperature [°C]
-25...90
Protection class
III
Protection
IP 65; IP 67; IP 68; IP 69K
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Operating voltage [V]
< 50 AC / < 60 DC
Ambient temperature (moving) [°C]
-25...90
Material nut
brass, nickel-plated
Connection
Connector: 1 x M8, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
Materials
housing: TPU orange; Sealing: FKM
Storage humidity [%]
10...100

Description

Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards cRUus Approval
