  6. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

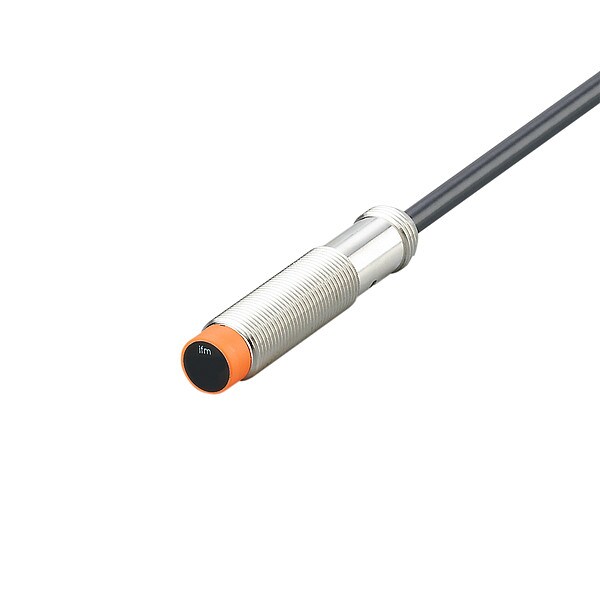

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded IF7105 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # IF7105

  • Zoro # G7216973

product price:  $36.85
/ea

Key Features

Style
Cylindrical, Inductive
Overall Diameter
12 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
15 to 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
IF7105
Zoro #
G7216973
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
12 mm
Cable Length
2 m
Length
61 mm
Overall Height
60 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
15 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
4 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A002
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Includes
(2) Lock Nuts
Max. Current Load
100mA
IP Rating
IP67
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Operating Temperature - Maximum
167 Degrees F
Output Circuit Current - Maximum
100 mA
Output Circuit Voltage - Maximum
2.5 V DC
Electrical Installation Type
Prewired Cable
Switching Frequency
800 Hz
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Bronze Coated
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 15 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Nickel Plated Brass, Length 61 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
