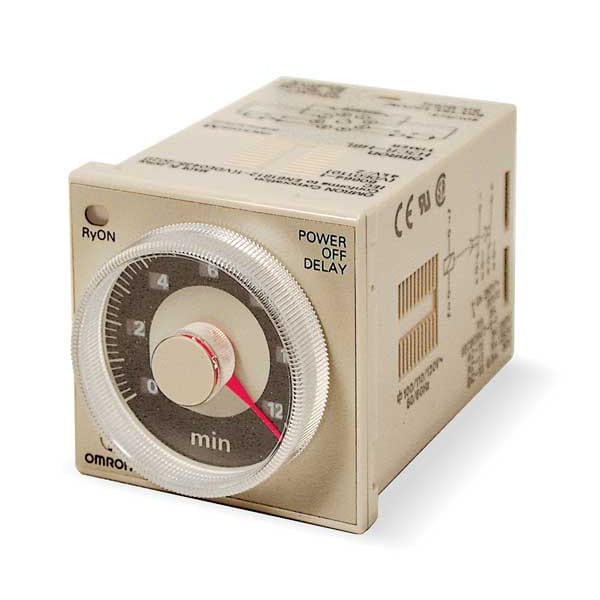

Single Function Time Delay Relay, Square, Off Delay, 1 Functions 120V AC, DPDT

  • Mfr # H3CR-H8L-AC100120M

  • Zoro # G2144143

CAD Available
product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
12 min
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H3CR-H8L-AC100120M
Zoro #
G2144143
UPC #
-
Country of Origin
Indonesia
Item
Single Function Time Delay Relay
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
12 min
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
5 A
Contact Form
DPDT
Contact Rating (AC)
5 A @ 250V
Coil Rating
5VA
Contact Amp Rating (Resistive)
5A
Socket
1EGP3, 1EGP5, 5X852
Standards
CCC, CE Certified, CSA Certified, EN 61812-1, LR, NK, UL Listed, UR
Number of Functions
24
Status Indicator
None
Operating Functions
10
Electrical Connection
Socket
Contact Material
Silver Alloy
Input Voltage
100 to 120V AC
Adjustment Method
Analog Dial
Minimum Operating Temperature
14 Degrees F
Weight
4.23 oz
Mounting Style
Surface
Reset Method
Forced Reset
Mechanical Operating Durability
20,000,000
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Sealing
Enclosed
Relay Operation
Solid State
Maximum Operating Temperature
131 Degrees F
Compatible with Manufacturer Model Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Operating Time Accuracy
+/-0.2% FS max
Power Consumption
5 VA
IP Rating
IP40
Compatible Manufacturer Part Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Compatible Manufacturer Model Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Compatible with Mfr. Model No.
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Compatible Mfr. Model Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
CAD Available
Yes
For Manufacturer Part Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0
Compatible with Mfr. Model Number
P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0

Description

Single Function Time Delay Relay, Adjustment Method Analog Dial, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Contact Rating (AC) 5 A @ 250V, Current Rating 5 A, Number of Delay Functions 1, Delay Function Power Off Delay, Electrical Connection Socket, IP Rating IP40, Input Voltage 100 to 120V AC, Minimum Time Setting 0.05 sec, Maximum Time Setting 12 min, Number of Pins 8, Sealing Enclosed, Mounting Style Surface, Body Depth 2.51 in, Body Height 1.89 in, Body Width 1.89 in
