  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

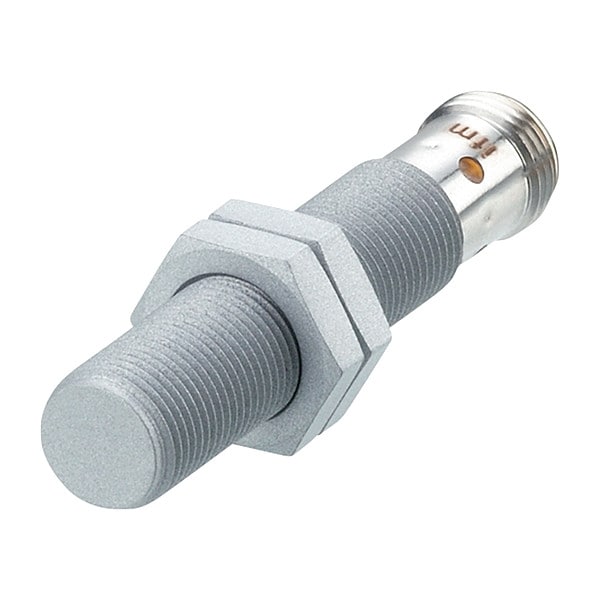

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded IFR200 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # IFR200

  • Zoro # G9990102

product price: $78.79
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IFR200
Zoro #
G9990102
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M12 x 1 / L = 60
Overall Height
60 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
2 Hz
Operating Temp. Range
32 Degrees to 185 Degrees F
Max. Current Load
100mA
Includes
(2) Lock Nuts
IP Rating
IP67
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A012
Electrical Connection
M12
Correction factor
steel: 1 / stainless steel: 0.6 / brass: 0.7 / aluminium: 0.6 / copper: 0.3
Type of short-circuit protection
pulsed
Display
switching status 4 x 90° LED, yellow operation 1 x LED, green
Housing
threaded type
Short-circuit protection
yes
Thread designation
M12 x 1
Materials
housing: stainless steel (1.4404 / 316L) anti-spatter; sensing face: stainless steel (1.4404 / 316L) anti-spatter; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) anti-spatter
Embedded software included
yes
Protection
IP 67
Protection class
III
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
100
Current consumption [mA]
< 20
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
Pressure rating [bar]
100
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Items supplied
lock nuts: 2
Impact resistance
1 J
MTTF [years]
1152
Increased sensing range
yes
Full-metal housing
yes
Hysteresis [% of Sr]
1...20
Note on pressure rating
sensing face
Operating distance [mm]
0...3.25
Ambient temperature [°C]
0...85
Application
Use in welding applications
Sensing range [mm]
4
Overload protection
yes
Special feature
Gold-plated contacts; Increased sensing range; Full-metal housing; Magnetic-field immune; anti-spatter
Max. voltage drop switching output DC [V]
2.5
Magnetic-field immune
yes; (pulse duration of the welding current: < 200 ms)
Tightening torque [Nm]
6
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A012 File number UL E174191
Electrical design
PNP
Mounting
flush mountable
Operating voltage [V]
10...30 DC
Switching frequency DC [Hz]
2
Ambient temperature [°C]
0...85
Style
Cylindrical, Inductive
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
32 Degrees F
Sensing Distance - Maximum
4 mm
Number of Pins
4
Switching Frequency
2 Hz
Sensing Face Shielding
Shielded
Output Circuit Current - Maximum
100 mA
Body Stainless Steel Grade
316L
Output Circuit Number of Wires
3
Output Circuit Type
PNP
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Body Material
Stainless Steel
Output Circuit Voltage - Maximum
2.5 V DC
AC Voltage Rating
Not Rated

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 2 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material 316L Stainless Steel, Length 60 mm, Operating Temp. Range 32 Degrees to 185 Degrees F, Max. Current Load 100mA
