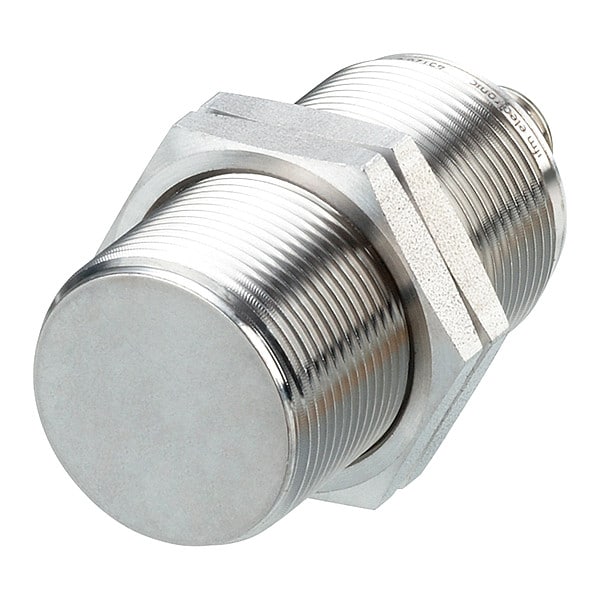

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Shielded IIT228 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # IIT228

  • Zoro # G7141285

product price:  $90.65
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 36V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IIT228
Zoro #
G7141285
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
30 mm
Length
70 mm
Dimensions [mm]
M30 x 1.5 / L = 65
Overall Height
65 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
10 to 36V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
10 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A012
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
50 Hz
Includes
(2) Lock Nuts
Operating Temp. Range
32 Degrees to 212 Degrees F
Description/Special Features
All Metal Housing
IP Rating
IP68, IP69K
Max. Current Load
100mA
Sensing range [mm]
10
Correction factor
steel: 1 / stainless steel: 0.6 / brass: 0.8 / aluminium: 0.6 / copper: 0.2
Pressure rating [bar]
100
Protection
IP 68; IP 69K
Thread designation
M30 x 1.5
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A012 File number UL E174191
Protection class
III
Max. voltage drop switching output DC [V]
2.5
Overload protection
yes
Short-circuit protection
yes
Tightening torque [Nm]
80
Housing
threaded type
Electrical design
PNP
Ambient temperature [°C]
0...100
Operating voltage [V]
10...30 DC
Full-metal housing
yes
MTTF [years]
1258
Reverse polarity protection
yes
Items supplied
lock nuts: 2
Note on pressure rating
sensing face
Permanent current rating of switching output DC [mA]
100
Mounting
flush mountable
Materials
housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Current consumption [mA]
< 20
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
Special feature
Gold-plated contacts; Full-metal housing
Operating distance [mm]
0...8.1
Switching frequency DC [Hz]
50
Embedded software included
yes
Display
switching status 4 x 90° LED, yellow
Application
Use in wet areas and in the food and beverage industry
Impact resistance
1 J
Type of short-circuit protection
pulsed
Hysteresis [% of Sr]
1...20
Ambient temperature [°C]
0...100
Body Stainless Steel Grade
316L
Number of Pins
4
Operating Temperature - Minimum
32 Degrees F
Switching Frequency
50 Hz
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Output Circuit Current - Maximum
100 mA
Output Circuit Voltage - Maximum
2.5 V DC
Operating Temperature - Maximum
212 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 50 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP68, IP69K, Case Material 316L Stainless Steel, Length 70 mm, Operating Temp. Range 32 Degrees to 212 Degrees F, Max. Current Load 100mA
