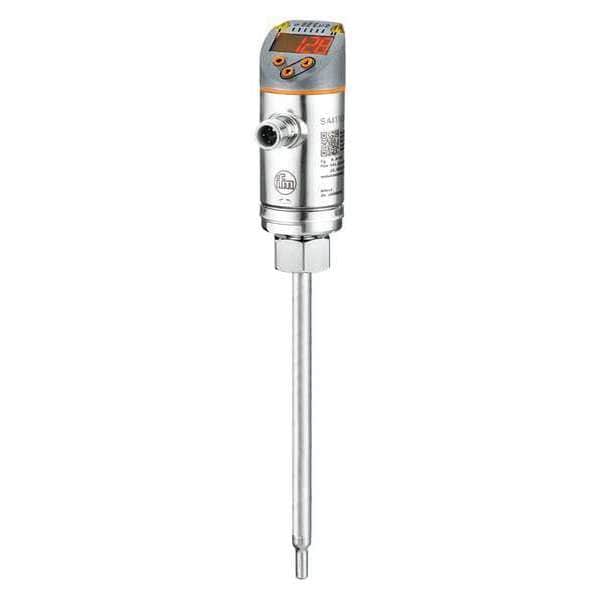

Flow Sensor, 0-19.5 fps, 100mm Probe
Mfr # SA4110
Zoro # G7823177
product price: $505.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Stainless Steel
Connection Size
5/16 in
Connection Type
Clamp
Standards
DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 60947-5-9, IEC 61131-9, UL Listed
Overall Height
7.6 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SA4110
Zoro #
G7823177
UPC #
-
Country of Origin
Germany
Dimensions
Connection Size
5/16 in
Overall Height
7.6 in
Overall Width
1.9 in
Details
Item
Flow Rate Sensor
Housing Material
Stainless Steel
Connection Type
Clamp
Standards
DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 60947-5-9, IEC 61131-9, UL Listed
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
176 Degrees F
Flowmeter Type
Thermal Dispersion
Operating Pressure - Maximum
725 psi
Output Frequency
1,000 Hz
Accuracy
+/- 7% MW + 2% MEW
Wetted Material
Stainless Steel
Voltage - Maximum
30V DC
Description
Flow Rate Sensor, Flowmeter Type Thermal Dispersion, Connection Size 5/16 in, Connection Type Clamp, Viscosity - Maximum Not Applicable, Housing Material Stainless Steel, Filter Rating - Maximum Not Applicable, Operating Pressure - Maximum 725 psi, Accuracy +/- 7 Percent MW + 2 Percent MEW, Output Frequency 1,000 Hz, Voltage - Maximum 30V DC, Pulse Rate Not Applicable, Wetted Material Stainless Steel, Standards DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 60947-5-9, IEC 61131-9, UL Listed
