  11. IO-Link Master, 16 Inputs, 20 to 30VDC

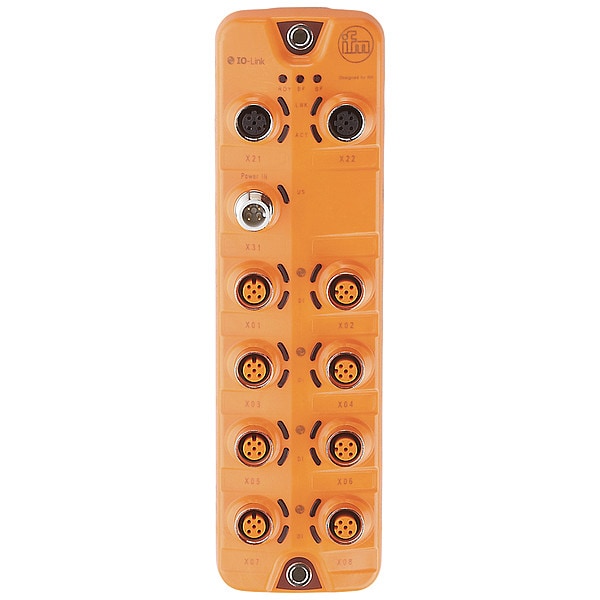

Ifm IO-Link Master, 16 Inputs, 20 to 30VDC AL1122 - main

IO-Link Master, 16 Inputs, 20 to 30VDC

  • Mfr # AL1122

  • Zoro # G308168416

product price: $465.99
/ea
Free Shipping & Returns

Key Features

Application
I/O Modules for Field Applications
Standards
CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Minimum Ambient Temperature
-25 Degrees C
IO-Link Revision
1.1
Operating Voltage
20 to 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
AL1122
Zoro #
G308168416
UPC #
-
Country of Origin
Poland

Details

Item
IO-Link Master
Application
I/O Modules for Field Applications
Standards
CE, cULus Listed, DIN EN 60068-2-27, DIN EN 60068-2-6 2008-10, DIN EN 60068-2-64 2009-04, EAC, EN 61000-6-2, EN 61000-6-4, UKCA
Minimum Ambient Temperature
-25 Degrees C
IO-Link Revision
1.1
Operating Voltage
20 to 30V DC
Transmission Type
COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)
Number of Digital Inputs
16
Current Consumption
3,900 mA
Housing Material
Polyamide
Transmission Rate
10 MBps, 100 MBps
Electrical Connection Type
M12 Connector
Protection Features
IP65, IP66, IP67, Protection Class III
Maximum Ambient Temperature
60 Degrees C
Maximum Current Load Per Output
300 mA
Communication Interface
Ethernet, IO-Link
Number of Digital Outputs
8
Chemical media
ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA
IO-Link Port Class A X01...X08
Connector: M12; coding: A; Sealing: FKM
Short-circuit proof
yes
Transmission standard
10Base-T; 100Base-TX
IN / OUT X21, X22
Connector: M12; coding: D; Sealing: FKM
Protection
IP 65; IP 66; IP 67
EMC
EN 61000-6-2 EN 61000-6-4
Protection class
III
Factory settings
IP address: 192.168.1.250 subnet mask: 255.255.255.0 gateway IP address: 0.0.0.0 MAC address: see type label
Pollution degree
2
Max. current load total [A]
3.6
Materials
housing: PA orange; socket: brass nickel-plated
Switching level low [V]
0...5
Note on interfaces
DHCP, BOOTP, static DLR (Device Level Ring) Supported network topologies: line ring
Shock resistance
DIN EN 60068-2-27
Digital inputs protected against short circuits
yes
Protection rating (NEMA 250)
6P
Max. relative air humidity [%]
90
Max. current load per output [mA]
300
MTTF [years]
78
Current consumption [mA]
300...3900; (US)
Number of inputs and outputs
Number of digital inputs: 16; Number of digital outputs: 8
Ambient temperature [°C]
-25...60
Switching level high [V]
11...30
Daisy-chain function
fieldbus interface
Operating voltage [V]
20...30 DC; (US; to SELV/PELV)
Protocol
EtherNet/IP
Vibration resistance
DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10
Total number of inputs and outputs
16; (configurable)
Storage temperature [°C]
-25...85
Number of ports class A
8
Sealing material
FKM
X31
Connector: M12; coding: A

Description

IO-Link Master, Application I/O Modules for Field Applications, Communication Interface Ethernet/IP, IO-Link, Current Consumption 3,900 mA, Electrical Connection Type M12 Connector, Housing Material Polyamide, IO-Link Revision 1.1, Maximum Ambient Temperature 60 Degrees C, Maximum Current Load Per Output 300 mA, Minimum Ambient Temperature -25 Degrees C, Number of Digital Inputs 16, Number of Digital Outputs 8, Operating Voltage 20 to 30V DC, Protection Features IP65, IP66, IP67
