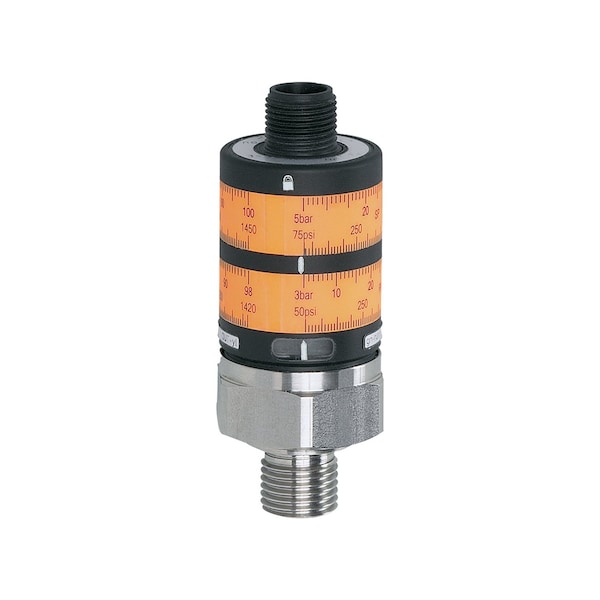

Pressure switch

251.99

/ea

Free Shipping & Returns

Overall Height

71.6 mm

Set Point - Minimum

181 psi

Wetted Materials

FKM, Stainless Steel

Pressure - Minimum

0 psi

Media Temperature - Minimum

-25 Degrees C

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Set Point - Minimum: 181 psi
Wetted Materials: FKM, Stainless Steel
Pressure - Minimum: 0 psi
Media Temperature - Minimum: -25 Degrees C
Pressure - Maximum: 3,625 psi
Switching Signal Output: PNP
IP Rating: IP67
Operating Temperature - Maximum: 80 Degrees C
Housing Material: FKM, PBT, PC, Stainless Steel
Standards: DIN EN 61000-6-2, DIN EN 61000-6-3, DIN IEC 68-2-27, DIN IEC 68-2-6
Product Type: Water and Air Pressure Switch
Item: Pressure Switch
Compatible Media: Gas, Liquid
Reset Point - Maximum: 3,553 psi
Reset Point - Minimum: 109 psi
DC Contact Rating: 500 mA @ 32 V
Electrical Connection: 4-Pin M12 Male Connector
Set Point - Maximum: 3,625 psi
Features: High Long-Term Stability, Mechanical Locking
Burst Pressure: 14,500 psi
Operating Temperature - Minimum: -25 Degrees C
Media Temperature - Maximum: 80 Degrees C
Pressure Connection Type: 1/4" BSPP, M5
Pressure Switch Action Type: Reverse

Pressure Switch, Standards DIN EN 61000-6-2, DIN EN 61000-6-3, DIN IEC 68-2-27, DIN IEC 68-2-6
