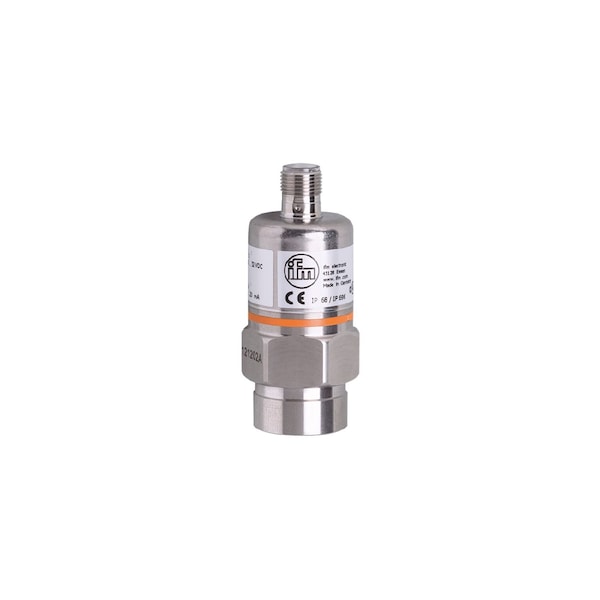

Pressure transmitter with ceramic measuring cell
Mfr # PA9024
Zoro # G122868134
product price:Â
$
719.99
/ea
Free Shipping & Returns
Key Features
Pressure Range
0 to 10 bar, 0 to 145 psi, 0 to 1000 kPa, 0 to 1 MPa
Material of Construction
Stainless Steel (1.4404 / 316L); FKM; PA; EPDM/X
Length
75 mm
Dimension
Ø 30 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PA9024
- Zoro #
- G122868134
- UPC #
- -
- Country of Origin
- Romania
Dimensions
- Length
- 75 mm
- Dimension
- Ø 30 mm
Details
- Pressure Range
- 0 to 10 bar, 0 to 145 psi, 0 to 1000 kPa, 0 to 1 MPa
- Material of Construction
- Stainless Steel (1.4404 / 316L); FKM; PA; EPDM/X
Description
Precise linear 0...10 V output signal. High repeatability and low linearity error. With long-term stability thanks to high overload protection. Robust stainless steel housing for use in harsh industrial environments. Wide operating temperature range. Electronic pressure sensor; Operating voltage 16...32 DC V; 3-wire; M12 Connector; gold-plated contacts; for industrial applications.
