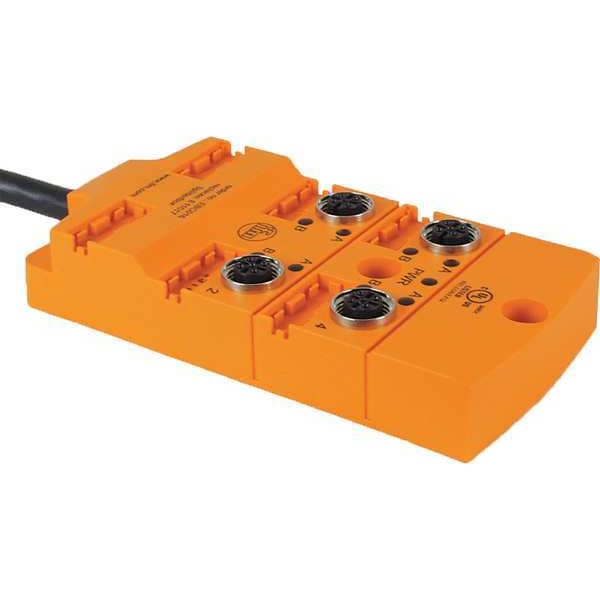

Ifm Sensor Wiring Block, 4 Pin, Receptacle EBC025 - main

Sensor Wiring Block, 4 Pin, Receptacle

  • Mfr # EBC025

  • Zoro # G6402821

product price: $159.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
4
Cable Length
10 m
Wire Size
22 AWG, 24 AWG
IP Rating
IP67, IP68
End 2 Connection Type
Bare Wire
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EBC025
Zoro #
G6402821
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
10 m
Wire Size
22 AWG, 24 AWG
Overall Width
18 mm
Thread Size
M12
Overall Height
82 mm
Overall Length
54 mm

Details

Item
Sensor Wiring Block
End 1 Number of Pins
4
IP Rating
IP67, IP68
End 2 Connection Type
Bare Wire
Max. Amps
12 A
End 1 Keyway
Single
End 1 Connection Type
Receptacle
End 1 Gender and Plug End
Female Straight
Standards
UL and cULus Listed
End 1 Thread
M12
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Temp. Range
-25 Degrees to 80 Degrees C
Number of Conductors
7
Max. Voltage
30VAC/DC
For Use With
Harsh Industrial Environment
Color
Black
Minimum Operating Temperature
-25 Degrees C
Cable Jacket Material
PUR
Resistance Properties
Coolant Resistant, Oil Resistant, Shock Resistant, Vibration Resistant
Number of Ports
4
Includes
(2) Protective Caps, (4) Labels
Voltage Rating
30 V AC/DC
Gender
Female
Number of Cores
7
Current Rating per Port
4 A
Maximum Operating Temperature
80 Degrees C
Cable Jacket Color
Black
Number of Poles
5
Connection Type
Receptacle

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 10 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (4) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 7, Number of Cores 7, Number of Poles 5, Number of Ports 4
