  11. Geared Bender, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4In

This item is Discontinued.

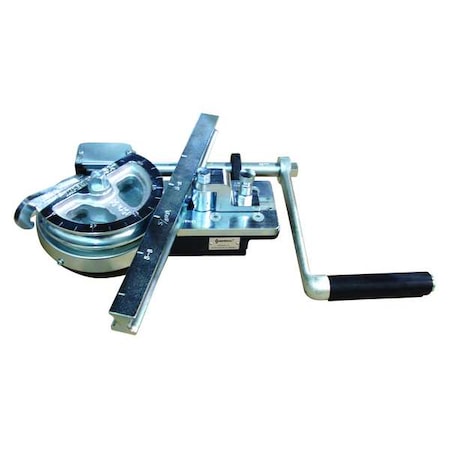

Imperial Geared Bender, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4In 600-F

Geared Bender, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4In (Discontinued)

  • Mfr # 600-F
  • Zoro # G1578412
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
600-F
Zoro #
G1578412
UPC #
699244120102
Country of Origin
United States

Dimensions

Outside Dia. Tubing (In.)
1/4 in, 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in
Centerline Bend Radius
3 in, 3/4, 1, 1 1/4, 2, 2 1/2
Overall Length (In.)
16 in
Overall Length
16 in
Centerline Bend Radius1
1 1/4 in for 3/8 in O.D. Tube, 1 in for 5/16 in O.D. Tube, 2 1/2 in for 5/8 in O.D. Tube, 2 in for 1/2 in O.D. Tube, 3 in for 3/4 in O.D. Tube, 3/4 in for 1/4 in O.D. Tube
Tubing Outside Diameter
3/4 in

Details

Item
Geared Bender
Bend Angle (Deg.)
0 to 180
Handle Type
Revolving Hand Grip
Meets/Exceeds
GGG-B-191b, Type 1 Class 2. ANSI spec B31.1 and ASME Section III Nuclear Code
Features
50-To-1 Gear Ratio and Crank with Revolving Hand Grip Keeps Effort at a Minimum, Adjustable Pressure Roller Positions Quickly in Index Holes, Enclosed Gears, Follow Bar Eliminates Drawing Action and Keeps Tube in Virtually Perfect Round, Includes Metal Tool Case. can be Clamped in Vise or Bolted to Bench or Tripod, Precision Tool for Highest Quality Work
Markings
Calibrated Angle Markings From 0 to 180 Degrees
Construction
Steel and Stainless Steel
Application
Tube Bending
Calibration Increments (Deg.)
15 Degrees
Material
Stainless Steel, Steel
Bend Angle - Maximum
180 Degrees
Calibration Increments
15 Degrees
Bend Angle - Minimum
0 Degrees
Standards
ANSI B31.1 and ASME Section III Nuclear Code, Federal Specification GGG-B-191b, Type I, Class 2

Description

Geared Bender, Tubing Outside Diameter 3/4 in, Bend Angle - Minimum 0 Degrees , Bend Angle - Maximum 180 Degrees , Centerline Bend Radius 1 1/4 in for 3/8 in O.D. Tube, 1 in for 5/16 in O.D. Tube, 2 1/2 in for 5/8 in O.D. Tube, 2 in for 1/2 in O.D. Tube, 3 in for 3/4 in O.D. Tube, 3/4 in for 1/4 in O.D. Tube, Application Tube Bending, Calibration Increments 15 Degrees

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
