  11. Flange Bearing, 2-Bolt, Ball, 20mm Bore
Shop All Flange Bearings
Ina

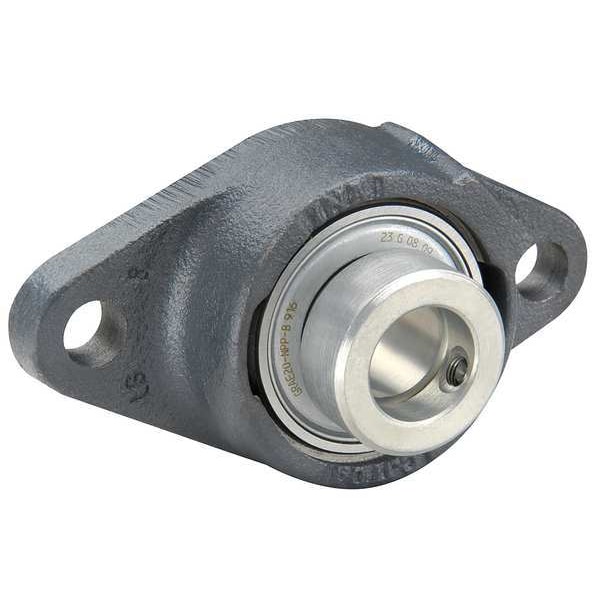

Flange Bearing, 2-Bolt, Ball, 20mm Bore

product price: $90.39
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 20 mm
  • Shaft Locking Type Eccentric Collar
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material Alloy Steel
See all product information

Product Information

Dimensions

Bore Dia. 20 mm
Bolt Size M10
Overall Height 112 mm
Dimension L 61 mm
Dimension H 112 mm
Overall Width 45.6 mm
Dimension A 28 mm
Dimension J 90 mm
Dimension D 20 mm
Overall Length 61 mm
Dimension N 11.5 mm
Mounting Bolt Size M6
Bore Diameter 20 mm
Mount Hole Size 6.6 mm
Mount Hole Center-to-Center Length 90 mm

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Eccentric Collar
Bearing Housing Material Type Cast Iron
Bearing Insert Material Alloy Steel
Bolt Hole Center-to-Center 90 mm
Series RCJT
Bearing Lubrication FAG Arcanol-MULTI2 or NLGI #2 Equivalent
Item 2 Bolt Flange Bearing
Standards GTB14 DIN1680-2
Housing Material Cast Iron
Dynamic Load Capacity 13,600 N
Includes TEXT
Temp. Range -20 Degrees to 120 Degrees F
Locking Type Eccentric Locking Collar
Finish Painted
Static Load Capacity 6,600 N
Static Radial Load Capacity 6,600 N
Bore Type Cylindrical
Housing Type Rhombus
Maximum Temperature 50 Degrees C
Load Direction Radial
Minimum Temperature -30 Degrees C
Flange Thickness 10 mm
Bearing Material Grade 100Cr6
Included Bearing Radial Insert Ball
Lubricant Material Lithium Complex Grease
Self Lubricating Bearing No
Rolling Element Rows 1
System of Measurement Metric
Housing Material Finish Painted
Split Housing Not Split
Seal Type Triple Ply Shroud Seal
Seal Material Nitrile Rubber
Closure Double Sealed
Lubrication Openings Threaded Lubrication Hole
Number of Mount Holes 2

Description

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 112 mm, Overall Length 61 mm, Overall Width 45.6 mm, Rolling Element Rows 1
