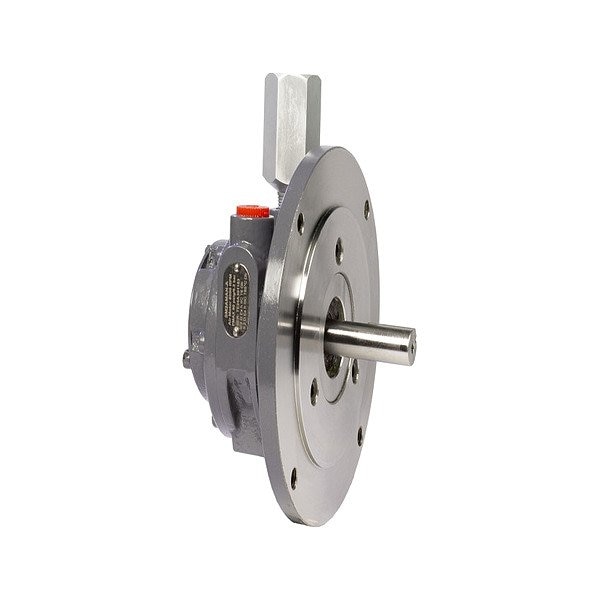

Air Motor, 8,000 RPM, 30 scfm
Mfr # SM2AMAN-A
Zoro # G715487414
product price:Â $460.99
/ea
Free Shipping & Returns
Key Features
Rotation
CW/CCW
Overall Length
5 1/2 in
Overall Width
3 3/4 in
Length Less Shaft
3 59/100 in
Keyway Length
1 1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SM2AMAN-A
- Zoro #
- G715487414
- UPC #
- 3663836046016
- Country of Origin
- India
Dimensions
- Overall Length
- 5 1/2 in
- Overall Width
- 3 3/4 in
- Length Less Shaft
- 3 59/100 in
- Keyway Length
- 1 1/4 in
- Shaft Length
- 2 in
- Overall Height
- 6 3/8 in
- Shaft Diameter
- 5/8 in
- Manufacturers Warranty Length
- 1 yr
- Inlet Size
- 3/8 in
- Wire Rope Length
- 5 1/2 in
Description
Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 27.43 in-lb, No Load Speed 8,000 RPM, Maximum Flow Rate 60 scfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Inlet Size 3/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Steel, Maximum Operating Pressure 90 psi, Weight 4.15 kg, Keyway Type Rounded, Maximum Ambient Temperature 104 Degrees F, Minimum Ambient Temperature 33.8 Degrees F, Mounting Orientation Any Angle, Keyway Length 1 1/4 in
