Ingersoll Rand

Air Screwdriver, 13 to 75 in.-lb.

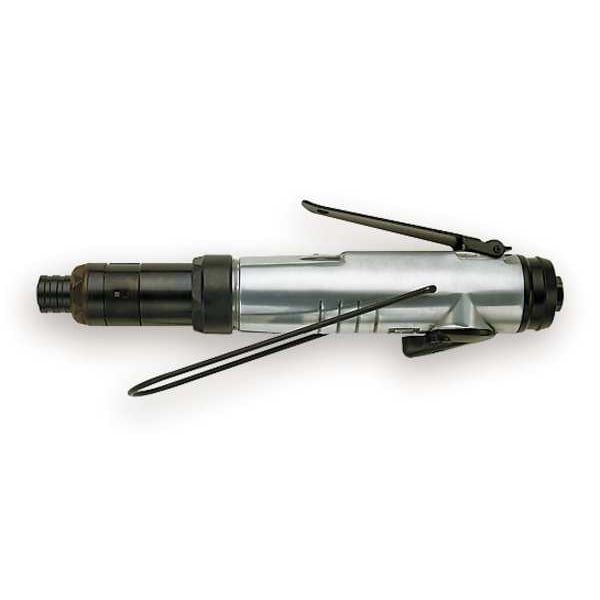

Ingersoll Rand Air Screwdriver, 13 to 75 in.-lb. 5RLNC1
Tap to zoom
Hover or click to zoom
$769.94
  • Item - Air Screwdrivers: Air Screwdriver
  • Body Style - Air Tools: In-Line
  • Torque Range Soft Draw: 13 to 75 in-lb
See full product details
This item ships free.

Total: $769.94

Ingersoll Rand #5RLNC1 Specifications

  • Item - Air Screwdrivers: Air Screwdriver
  • Body Style - Air Tools: In-Line
  • Torque Range Soft Draw: 13 to 75 in-lb
  • Max. Torque: 75 in-lb
  • Clutch Type - Air Screwdriver: Adjustable Cushion
  • Throttle Type - Air Screwdrivers: Lever
  • Free Speed: 1,000 RPM
  • Duty Cycle - Air Tools: Industrial Duty
  • Air Inlet Size - Air Tools: 1/4 in NPT
  • Hex Bit: 1/4 in
  • Throttle Type: Lever
  • Average CFM @ 15 Second Run Time: 4.00
  • Operation: Reversible
  • Handle Type: Inline
  • Item: Screwdriver
  • Min. Hose Size: 1/4 in
  • Overall Length: 10 3/4 in
  • CFM @ Full Load: 16.0
  • Air Inlet: 1/4 in NPT
  • Required Pressure: 90 psi
  • Clutch Type: Adjustable Cushion
  • Duty: Industrial
  • Includes: 1/4 in Quick-Change Bit Holder
  • Torque Range: 13 in-lb to 75 in-lb
  • Clutch Setting Location: Internal
  • Power Source: Air-Powered
  • Handle Material: Aluminum
  • Tool Weight: 2.9 lb
  • Side to Center: 0.8 in
  • Housing Material: Aluminum
  • Variable Speed: Yes
  • Air Consumption: 16 cfm
  • Duty Rating: Industrial Duty
  • Air Pressure: 90 psi
  • Min. Torque: 13 in-lb
  • Drive Size: 1/4 in
  • Number of Speed Settings: 1
  • Overall Width: 3 7/8 in
  • Application: Assembly
  • Exhaust Location: Rear
  • Noise Level: 75 dB
  • Overall Height: 2 3/4 in
  • Reversible: Yes
  • Country of Origin (subject to change): United States

Description

Screwdriver, In-Line Body Style - Air Tools, Torque Range Soft Draw 13 to 75 in-lb, Max. Torque 75 in-lb, Clutch Type - Air Screwdriver Adjustable Cushion, Lever Throttle Type - Air Screwdrivers, Free Speed 1,000 RPM, Industrial Duty Duty Cycle - Air Tools, Air Inlet Size - Air Tools 1/4 in NPT, 4.00 Average CFM @ 15 Second Run Time, 16.0 CFM @ Full Load, Required Pressure 90 psi, Min. Hose Size 1/4 in, Overall Length 10 3/4 in, Hex Bit 1/4 in, Reversible Operation
