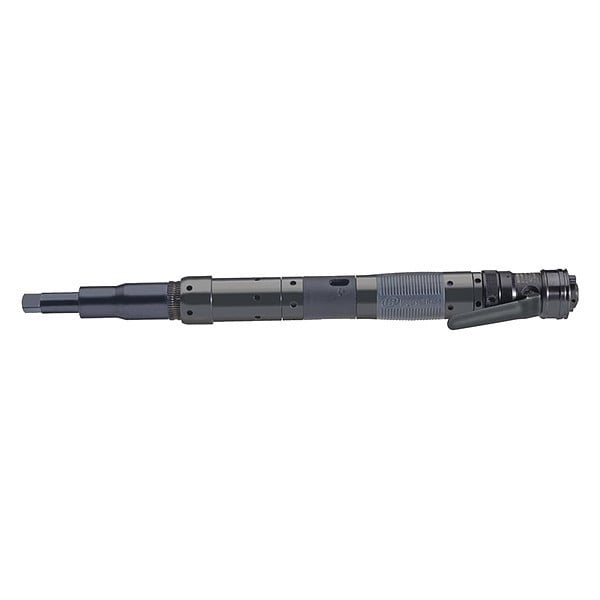

Ingersoll-Rand

Pneumatic Nut Runner, 3/8" Drive, 850 rpm


product price: $3,405.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Size 3/8 in Square
  • Torque Range Soft Draw 55.2 to 100.8 in.-lb.
  • Drive System Auto Shut Off
  • Free Speed 850 RPM
  • CFM @ Full Load 27.0
See all product information

Product Information

Dimensions

Drive Size 3/8 in Square
Head Width 1 5/8 in
Overall Length 18 3/8 in
Min. Hose Size 3/8 in

Details

Torque Range Soft Draw 55.2 to 100.8 in.-lb.
Drive System Auto Shut Off
Free Speed 850 RPM
CFM @ Full Load 27.0
Air Inlet 1/4 in NPT
Base to Top 1-7/8"
Item Nutrunner
Required Pressure 90 psi
Throttle Lever
Handle Material Aluminum/Steel
Torque Range 55.2 to 100.8 in-lb
Air Consumption 29 cfm
Exhaust Location Top
Noise Level 79 dB
Throttle Type Lever
Fastening Torque 11.1 ft-lb
Vibration Level Less Than 2.5 m/sq sec
Power Source Air Powered
Max. Air Pressure 90 psi
Reaction Bar No
Handle Type In-Line
Features Adjustable Shutoff Clutch, Flexible Anglehead, Reverse Ring
Tool Weight 3.2 lb
Side to Center 13/16 in
Standards All gov. standard and FDA certified
Duty Rating General Duty
Housing Material Aluminum/Steel
Min. Air Pressure 80 psi
Retainer Type Friction Ring
Max. Torque 11.1 ft-lb
Reversible Yes
Air Pressure 90 psi
Clutch Style Slip Clutch/Shut off

Description

Nutrunner, Drive Size 3/8 in Square, Torque Range 55.2 to 100.8 in-lb, Max. Torque 11.1 ft-lb, Free Speed 850 RPM, Air Pressure 90 psi, Air Consumption 29 cfm, Power Source Air Powered, Max. Air Pressure 90 psi, Min. Air Pressure 80 psi, Min. Hose Size 3/8 in, Exhaust Location Top, Duty Rating General Duty, Air Inlet 1/4 in NPT, Handle Type In-Line, Handle Material Aluminum/Steel, Housing Material Aluminum/Steel, Overall Length 18 3/8 in, Fastening Torque 11.1 ft-lb, Reversible Yes

Restrictions
