Innovative Products Of America

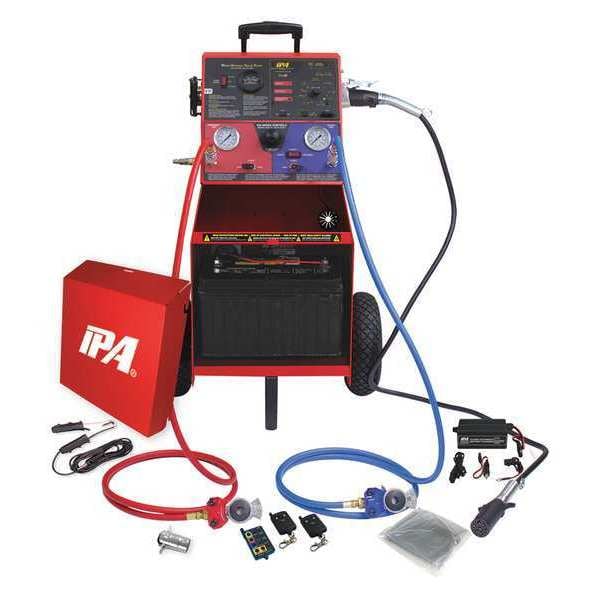

Trailer Tester, Scan Tool, Plastic

product price: $3,000.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Vehicle Diagnostics
  • For Use On Mfr. No. SAE J560, MS 75021-2 NATO
  • Used For Diagnostics
  • Includes (2) 12-Button Remote Controls, 8 ft Blue Hose with Gladhands, 8 ft Red Hose with Glad Hands, 5 ft 7-Way Cable, Face/Battery Shield, Rain Cover, 10 A Smart Battery Charger
  • Number of Pieces 9
See all product information

Product Information

Dimensions

Overall Height 35 in
Overall Width 15 in
Overall Depth 21 in

Details

Item Trailer Tester
Application Vehicle Diagnostics
For Use On Mfr. No. SAE J560, MS 75021-2 NATO
Used For Diagnostics
Includes (2) 12-Button Remote Controls, 8 ft Blue Hose with Gladhands, 8 ft Red Hose with Glad Hands, 5 ft 7-Way Cable, Face/Battery Shield, Rain Cover, 10 A Smart Battery Charger
Number of Pieces 9
Material Steel
Type Scan Tool
Displays LED
Operating Range 6 to 24V DC
Features Audible and Visual Alerts, Power Lights: Manually, All-On, Auto Scan or by Remote Control, Pulsar(R) Mode Allows Diagnostic Repair
Brake Types Tested Air Brakes
Connector Type 12-Pin NATO, 7-Way Round
Ports 20 AMP Independent Power Input, Chassis Ground Input, Cig Socket, Shop Air inlet
Electrical Diagnostics Cross Circuit Fault Detection, Ground Failure Detection, Light Testing, Open Circuit Fault Detection, Overload Circuit Fault Detection, Short Circuit Fault Detection, Wiring Diagnostics
Anti-Lock Brake Diagnostics Blink Codes
Control Type Manual, Remote
Mobility Cart
Maximum Operating Pressure 120 psi
Current 20 A @ 12V DC
Display Type LED
Manufacturer Warranty 3 yr
Includes Batteries Batteries Not Included
Compatible Trailer Type Military Trailers, Semi-Trailers

Description

Trailer Tester, Compatible Trailer Type Military Trailers, Semi-Trailers, Material Steel, Connector Type 12-Pin NATO, 7-Way Round, Control Type Manual, Remote, Operating Voltage 12V DC, Features Audible and Visual Alerts, Power Lights: Manually, All-On, Auto Scan or by Remote Control, Pulsar(R) Mode Allows Diagnostic Repair
