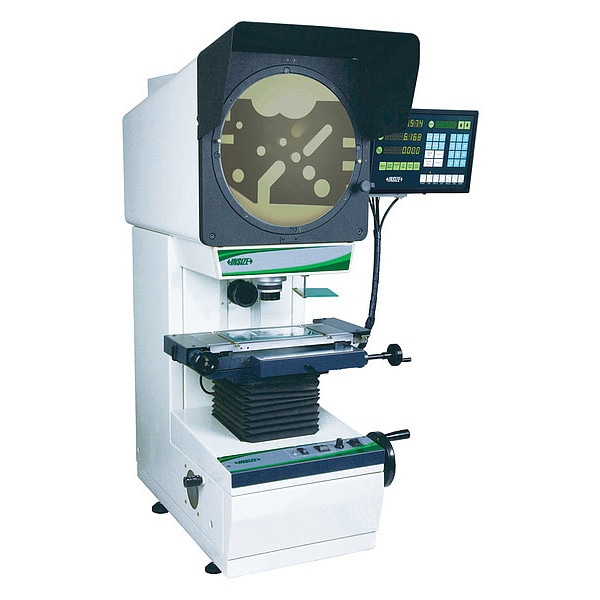

Vertical Optical Comparator, Erect Image

  • Mfr # ISP-Z3015

  • Zoro # G6565303

product price:  $15,154.99
/ea
Additional $190.00 delivery surcharge applies per item.
See details

Key Features

Image Type
Erect Image
Protractor Screen
12 in
Illumination
24V, 150 W Halogen
Magnification
10x
Table Size (In.)
13-3/8 x 6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ISP-Z3015
Zoro #
G6565303
UPC #
-
Country of Origin
China

Dimensions

Table Size (In.)
13-3/8 x 6
Size
21.6 x 30.3 x 43.3 in
Screen Size
12 in
Table Size
13 3/8 in x 6 in
Maximum Workpiece Height
3.54 in

Details

Item
Optical Comparator
Image Type
Erect Image
Protractor Screen
12 in
Illumination
24V, 150 W Halogen
Magnification
10x
Resolution
0.00002 in
Power Supply
Corded
Reading
Digital
Capacity (Lb.) Max.
8.82
Includes
Half-Reflection Mirror, Oblique Illumination Mirror, Overlay Chart Clip, Foot-Switch, Anti-Dust Cover
Table Travel
X Axis=6 in, Y Axis=2 in
Focusing Travel
3.56 in
Accuracy
+/-0.08%
Projector Series
INSIZE ISP-Z
Rotating Screen
+/-360 Degrees
Contour Illumination
24V, 150W Halogen Bulb
X-Axis Table Travel
6 in
Reference Line Style
Cross Hair Line
Surface Illumination
24V, 150W Halogen Bulb
Magnification - Included Lens
10X
Adjustable Brightness
Yes
Y-Axis Vertical Focus Travel
3.54 in
Optical System Orientation
Vertical
Measuring Unit
Digital
Effective Table Working Area
13 3/8 in x 6 in
Digital Readout Interface Included
KA Counter

Description

Optical Comparator, Resolution 0.00002 in, Accuracy +/-0.08 Percent, Contour Illumination 24V, 150W Halogen Bulb, Effective Table Working Area 13 3/8 in x 6 in, Image Type Erect Image, Magnification - Included Lens 10X, Measuring Unit Digital, Optical System Orientation Vertical, Projector Series INSIZE ISP-Z, Screen Size 12 in, Surface Illumination 24V, 150W Halogen Bulb, Table Size 13 3/8 in x 6 in, X-Axis Table Travel 6 in, Y-Axis Vertical Focus Travel 3.54 in, Adjustable Brightness Yes
