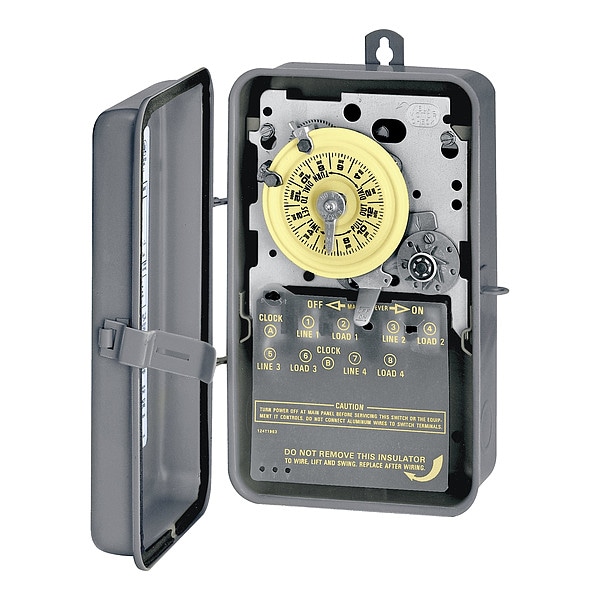

Intermatic Electromechanical Timer, DPST, 40A, 3R T173R - main

Electromechanical Timer, DPST, 40A, 3R

  • Mfr # T173R

  • Zoro # G0611816

product price: $183.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
20 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T173R
Zoro #
G0611816
UPC #
078275173026
Country of Origin
Mexico

Dimensions

Width
5 1/2 in
Height
9 3/8 in
Depth
3 5/8 in
Wire Size Min
#14 AWG
Product Width
6.5 in; 165.1 mm
Product Height
10.125 in; 257.2 mm
Wire Size Max
#8 AWG
Product Depth
3.625 in; 92.1 mm
Product Depth (in)
3.625
Product Height (in)
10.125
Product Width (in)
6.5
Overall Depth
3 5/8 in
Overall Width
6 1/2 in
Overall Height
10 1/8 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
20 hr
Contact Form
DPST
Max. On/Off Cycles
10
Operating Temp.
-40 to 157
Contact HP @ 240V
5 hp
NEMA Rating
3R
Mount
Keyhole
Extra Trippers
11Z965
Type
24-Hour
Description/Special Features
Provides Up to 10 ON/OFF Operations Each Day with Min ON/OFF Operations of 1 Hour and Max ON Time of 20 Hours
Contact HP @ 120V
2 hp
Number of Poles
2
Nominal Max. Time Setting
24 hr
Finish
Gray Enamel
Time Setting Range
1 hr. to 20 hr.
Standards
cCSAus, cULus
Day Skipper
Yes
Number of Trippers Included
2
Product Type
Timer
Operation Mode
25 hour
Resistive Load Ratings
40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Solutions
Machinery & Pumps; Panel Integrators
Operating Temperature Max
130°C
Wiring Option
Terminals
CSA Certification
cCSAus
Tungsten Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Tungsten Load Ratings
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz
Timing Interval
1 hr
Has Manual Override CVL
Yes
Maximum On Off Operations
10
Pilot Duty Load Ratings
1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz
Inductive Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Packaging Applications
Indoor/Outdoor Lighting; Pool Heaters; Pumps; Blowers; Conveyors; Electric Fences; Fans; Filters; Signs; Various Other Electrical Loads; Commercial; Industrial; Residential
Pilot Duty Load Ratings Ranges
1000 VA, 120-277 VAC, 60 Hz
Electronic Ballast Load Ratings
16 A, 277 VAC, 60 Hz
Resistive Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Operating Temperature Min
-40°C
Switch Type
DPST
UL Certification
cULus
Application Compatibilities
LED; HID
Motor Load Ratings
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Inductive Load Ratings
40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Minimum On Off Time
1 hour
Skipper Wheel Operation Mode
Not Included
Power Consumption Max W
3 W
UL Cerfication File Number
UL916
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
Electronic Ballast Load Ratings Ranges
16 A, 277 VAC, 60 Hz
Market
Commercial; Industrial
Input Voltage Ranges
120 VAC, 60 Hz
Number Of Circuits
1
Resistive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Operating Temperature Min (°F)
-40
Skipper Wheel
Not Included
Features
Manual Override, Three Day-Skipper Screws Included
Inductive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Pilot Duty (NO)
1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Minimum ON/OFF Times
1 hour
Motor Load Ratings Ranges
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Maximum Power Consumption (W)
3 W
Input Voltage Range(s)
120 VAC, 60 Hz
Tungsten Range(s)
40 A, 120-277 VAC, 60 Hz
Has Manual Override
Yes
Tungsten (NO)
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Electronic Ballast
16 A, 277 VAC, 60 Hz
Operating Temperature Max (°F)
130
Maximum ON/OFF Operations
10
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
130
Number of Trippers - Maximum
2
Indoor/Outdoor Usage
Outdoor
Series
T100
Body Color
Grey
Compatible Lighting
HID, LED
Time Setting - Maximum
24 hr
Body Material
Steel
Mounting Style
Surface
Time Setting - Minimum
1 hr
On/Off Cycles - Maximum
10
Operating Temperature - Maximum
130 Degrees F
AC Voltage Rating
120V AC
NEMA Enclosure Rating
3R
Horsepower @ 240V - Maximum
5 hp
Application
Lighting
Horsepower @ 120V - Maximum
2 hp
Current Rating - Maximum
40 A
Operating Temperature - Minimum
-40 Degrees F
Time Maximum Setting
24 hr.
Time Minimum Setting
1 hr.

Description

Electromechanical Timer, 24-Hour, Number of Poles 2, Contact Form DPST, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V 5 hp, Day Skipper Yes, Enclosure Type Steel, Finish Gray Enamel, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 20 hr, Max. On/Off Cycles 10, Width 5 1/2 in, Depth 3 5/8 in, Height 9 3/8 in, Number of Trippers Included 2, Extra Trippers 11Z965, Operating Temp. -40 to 157
