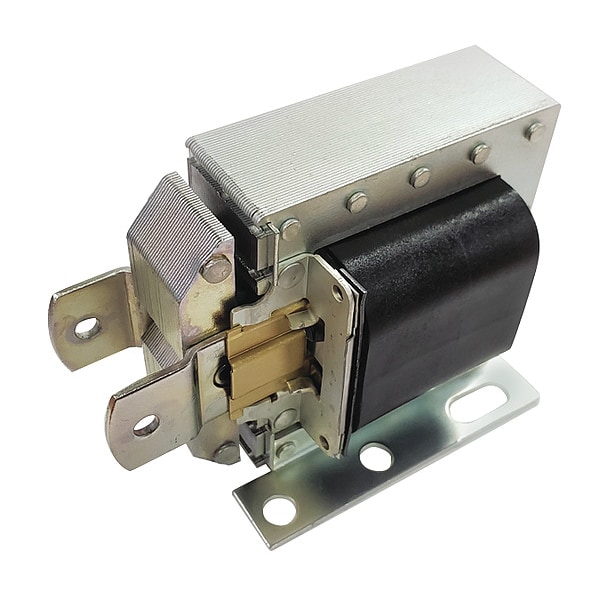

Solenoid, Intermittent, Class 105, Class A, 120V AC

  • Mfr # 3500-M-1

  • Zoro # G8269356

product price:
$
72.39
/ea

Key Features

Duty Cycle
Intermittent
Standards
RoHs
Pull @ 1-1/4 In. Stroke
256 oz
Width
2 973/1000 in
Depth
2 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3500-M-1
Zoro #
G8269356
UPC #
-
Country of Origin
United States

Dimensions

Width
2 973/1000 in
Depth
2 3/8 in
Length
2 937/1000 in

Details

Item
Solenoid
Duty Cycle
Intermittent
Standards
RoHs
Pull @ 1-1/4 In. Stroke
256 oz
Pull @ 5/8 In. Stroke
336 oz
Pull @ 1 In. Stroke
368 oz
Stroke Range
0 to 1.25 in
Material of Construction
Steel
Coil Insulation
Class 105; Class A
Terminals
Solder Lugs
Coil Volts
120V AC
Pull @ 7/8 In. Stroke
368 oz
Solenoid Type
AC Laminate Pull Type
Mounting Holes
(2) slots, Ø.281 x .375 & (2) Ø.281 thru
Seated Watts
47 W
Pull @ 3/8 In. Stroke
304 oz
Pull @ 1/2 In. Stroke
320 oz
Amps @ Max. Stroke
17 A
Pull @ 3/4 In. Stroke
368 oz
Max. On Time
180 sec
Pull @ 1/8 In. Stroke
448 oz
From Mounting Holes to Plunger Hole
157/200 in
Pull @ 1/16 In. Stroke
512 oz
Coil Resistance
4.8 ohms
Seated Amps
1.8 A
Pull @ 1/4 In. Stroke
320 oz
Pull Force Range
256.0 to 512.0 oz

Description

Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1.25 in, Pull Force Range 256.0 to 512.0 oz, Width 2 973/1000 in, Depth 2 3/8 in, Length 2 937/1000 in, Coil Volts 120V AC, Seated Amps 1.8 A, Seated Watts 47 W, Coil Resistance 4.8 ohms, Coil Insulation Class 105; Class A, Terminals Solder Lugs, Amps @ Max. Stroke 17 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (2) slots, �.281 x .375 & (2) �.281 thru
