Item
|

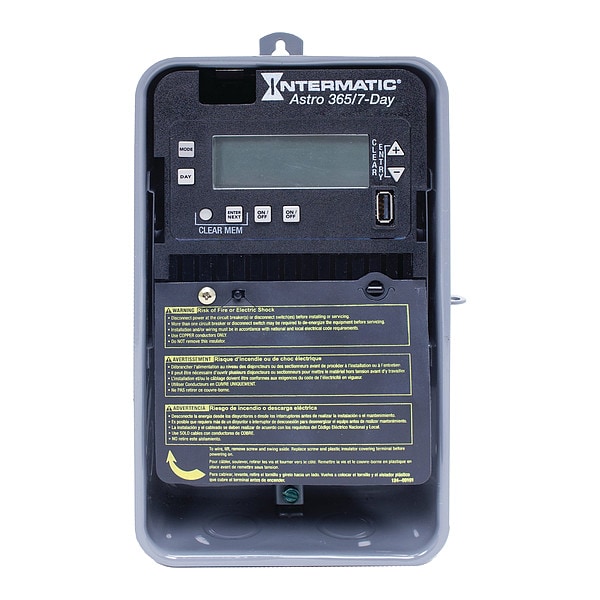

Electronic Timer
|
Operation Mode
|
Astro 7/365 Days
|
Number of Channels
|
2
|
Contact Form
|
SPST
|
Voltage
|
120 to 277V AC
|
Amps
|
30 A
|
HP @ 120V
|
1
|
HP @ 240V
|
2
|
Events Available - Electronic Timer
|
96
|
Available Actions - Electronic Timer
|
On/Off, Pulse
|
Enclosure
|
Metal
|
Operating Temp.
|
-40 Degrees to 155 Degrees F
|
Backup Device
|
Capacitor
|
Number of Poles
|
2
|
Description/Special Features
|
Outdoor
|
Mounting
|
Surface
|
Pulse Duration
|
2 sec
|
Event Allocation - Electronic Timer
|
1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
|
Min. Time Setting
|
1 min
|
Backup Time
|
100 hr
|
Color
|
Gray
|
NEMA Rating
|
3R
|
Number of Pulse Events
|
48
|
Max. Time Setting
|
7 day
|
Standards
|
California Title 20 Listed, LED Listed, UL Listed
|
Max. On/Off Cycles
|
96
|
Features
|
100-hour supercapacitor eliminates the need for batteries; Up to 96 set points or events; Up to 50 holiday blocks with schedule capabilities; Automatic input voltage selection from 120 to 277 VAC, 60 Hz; Additional mode of operation turns the ON/OFF buttons into 2-hour overrides; Configurable outputs allow the control of various voltages and applications; Relays incorporate zero-crossing technology to extend the life of the control; Non-volatile EEPROM memory protects programming indefinitely; LED compatible; USB port makes transferring and saving of schedules easy
|
Hz - Electrical
|
60 Hz
|
Switch Type
|
2xSPST, 1xDPST or Pulse
|
Max. Ballast Amps
|
10 A, 120/277 VAC
|
Max. Wattage
|
5 W
|
Display
|
LED
|
Enclosure Type
|
Outdoor type 3R metal
|
Adjustment Type
|
Automatic
|
Application
|
Commercial, Industrial, Utility, Lighting Control, Energy Savings, Security, Comfort & Convenience, Machinery & Pumps, Outdoor Lighting Control, Timing/Scheduling ON/OFF, Machinery & Pump Controls, Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
|
Voltage Type
|
Auto Voltage
|
Backup Protection Time
|
100 Hour
|
Daylight Savings Adjustment
|
Automatic
|
Wiring Option
|
Terminals
|
Operation Features
|
Astronomic, Holiday
|
Body Material
|
Metal
|
Motor Load Ratings NO Ranges
|
1 HP, 120 VAC; 2 HP, 240 VAC
|
Resistive (NO) Range(s)
|
20 A, 28 VDC; 30 A, 120-240 VAC
|
Electronic Series
|
ET2000 Series
|
UL Certification
|
CULUS
|
Applications
|
Machinery & Pump Controls
Outdoor Lighting Control
Timing/Scheduling ON/OFF
|
Electronic Ballast Load Ratings NO Ranges
|
10 A, 120/277 VAC
|
Maximum ON/OFF Times
|
Indefinite
|
Voltage Selection Type
|
Auto Voltage
|
Minimum ON/OFF Times
|
1 min
|
Backup Type
|
Supercapacitor
|
Inductive Load Ratings NO Ranges
|
30 A, 120-240 VAC
|
Maximum ON/OFF Operations
|
96
|
Maximum Power Consumption (W)
|
5 W
|
Minimum Pulse Time
|
2 sec
|
Input Voltage Range(s)
|
120-277 VAC, 60 Hz
|
On Off Operations
|
96
|
Application Compatibilities
|
LED
|
Maximum Pulse Time
|
2 sec
|
Backup Restoration Time
|
30 Minutes
|
Number Of Circuits
|
2
|
Operating Temperature Min (°F)
|
-40
|
Operating Temperature Max (°F)
|
104
|
Magnetic Ballast (NO) Range(s)
|
20 A, 120-277 VAC
|
Material
|
Metal
|
Tungsten (NO) Range(s)
|
5 A, 120-277 VAC
|
Operating Temperature Max (°F)
|
104
|
Operating Temperature Min (°F)
|
-40
|
