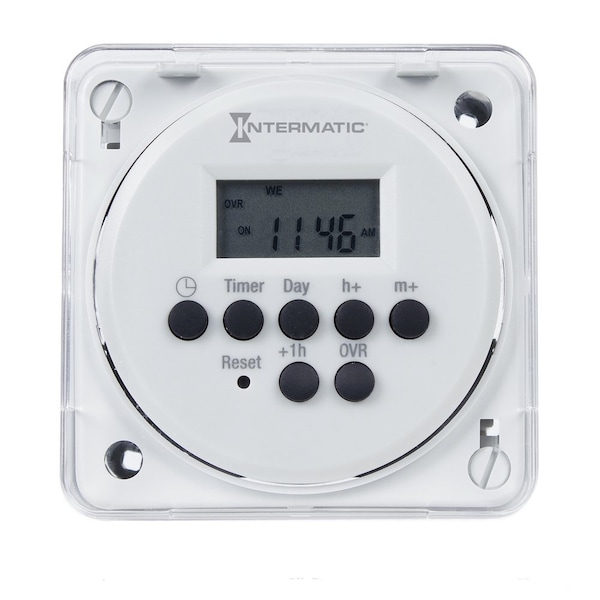

Intermatic Electronic Timer, White, Plastic FM1D20E-LV-8 - main

Electronic Timer, White, Plastic

  • Mfr # FM1D20E-LV-8

  • Zoro # G411248692

product price: $226.99
/ea
Free Shipping & Returns

Key Features

Number of Channels
1
Contact Form
SPDT
Application
Machinery, HVAC
Number of Poles
1
Backup Device
Battery
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FM1D20E-LV-8
Zoro #
G411248692
UPC #
078275156869
Country of Origin
China

Dimensions

Overall Depth
2 1/16 in
Overall Width
2 13/16 in
Overall Height
3 13/16 in

Details

Item
Electronic Timer
Number of Channels
1
Contact Form
SPDT
Application
Machinery, HVAC
Number of Poles
1
Backup Device
Battery
Standards
cRUus, RoHS, California Title 20
Features
LCD Display, Manual Override with Status Indication, Self-Recharging Battery
Backup Time
2,500 hr
Body Color
White
Time Setting - Maximum
7 day
Indoor/Outdoor Usage
Indoor
Time Setting - Minimum
1 min
Operating Temperature - Maximum
131 Degrees F
Mounting Style
Surface
AC Voltage Rating
120-277V AC
Horsepower @ 240V - Maximum
1/2 hp
Events Available
21
Body Material
Plastic
Astronomic Functionality
No
Series
FM1D20
Horsepower @ 120V - Maximum
1/2 hp
Operating Temperature - Minimum
5 Degrees F
Current Rating - Maximum
15 A
Timer Functions
On/Off Cycle
NEMA Enclosure Rating
No Enclosure
Time Maximum Setting
8 day
Time Minimum Setting
2 min

Description

Electronic Timer, Number of Channels 1, Contact Form SPDT, Number of Poles 1, Backup Device Battery, Backup Time 2,500 hr, Standards cRUus, RoHS, California Title 20

Restrictions

Hazardous material
