  11. Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

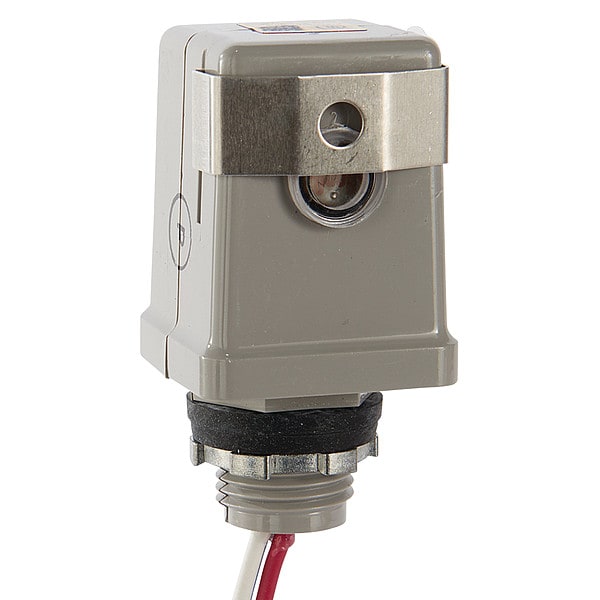

Intermatic Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min K4121C - main

Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4121C

  • Zoro # G2958164

product price: $14.44
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Length
2 5/16 in
Manufacturers Warranty Length
2 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4121C
Zoro #
G2958164
UPC #
078275002012
Country of Origin
Mexico

Dimensions

Length
2 5/16 in
Manufacturers Warranty Length
2 yr
Width
1 9/16 in
Depth
1 9/16 in
Overall Height
3 in
Wire Lead Length
9 in; 228.6 mm
Wire Size Max
#18 AWG
Stem Diameter
1/2 in
Stem Thread Size
1/2"-14

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Standards
cCSAus, California Title 20, UL Listed
Housing Material
Polycarbonate
Enclosure Type
Raintight
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Contact Form
SPST
Setting
Dusk to Dawn
Description/Special Features
Fixed Type with Built in Relay
Includes
Lock Nut, Washer Gasket
Tungsten Load Ratings
15 A, 1800 W
Activation On
1 to 5 fc
Photocontrol Style
Stem Mount
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Photocontrol Switch Type
Mechanical Bimetal
Expected Lifetime Years
5
Expected Lifetime Operations
3650
Market
Commercial; Residential; Industrial
Activation Off
3 to 15 fc
Wiring Option
Wire leads
Magnetic Ballast Load Ratings
8.3 A, 1000 VA
Input Voltage Ranges
120 VAC, 50/60 Hz
Fail Mode
ON
UL Certification
UL
Applications
Outdoor Lighting Control
Photocontrol Sensor Location
Side
Photocontrol Type
Thermal
CSA Certification
cCSAus
Photocontrol Photocell Type
Cadmium Sulfide
Features
Standard 3-Prong Connector
UL Standard
UL773
Operating Temperature - Maximum
158 Degrees F
Compatible Lighting
Fluorescent, HID, Incandescent
Ballast Current - Maximum
8.3 A
On Illumination - Maximum
5 fc
On Illumination - Minimum
1 fc
Body Color
Gray
Incandescent Current - Maximum
15 A
Mounting Style
Stem
Operating Temperature - Minimum
-40 Degrees F
Time Delay - Maximum
90 sec
Indoor/Outdoor Usage
Outdoor
Off Illumination - Minimum
3 fc
Stem Thread Type
NPSM
Time Delay - Minimum
30 sec
Off Illumination - Maximum
15 fc
AC Operating Voltage
120V AC
Wattage - Maximum
1,800 W

Description

Photocontrol, Mounting 1/2 in Male Pipe Thread, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 5/16 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Lock Nut, Washer Gasket
