  11. Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min

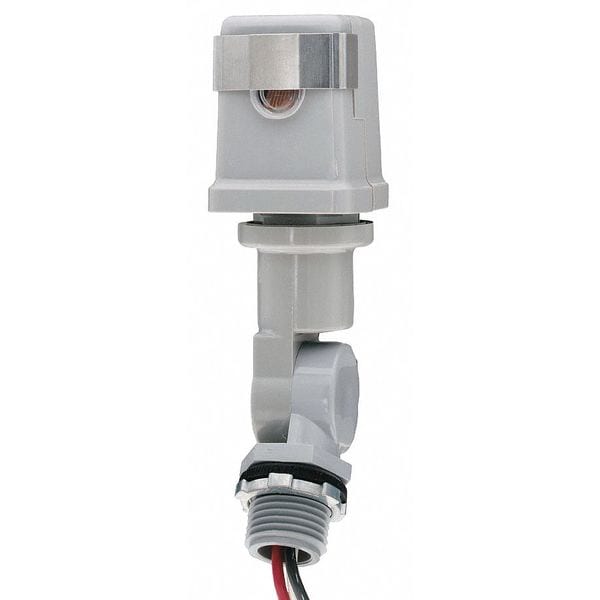

Intermatic Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min K4223C - main

Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4223C

  • Zoro # G6851801

product price: $32.99
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Setting
Dusk to Dawn
Width
1 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4223C
Zoro #
G6851801
UPC #
078275056954
Country of Origin
Mexico

Dimensions

Width
1 9/16 in
Manufacturers Warranty Length
2 yr
Length
5 1/2 in
Depth
1 9/16 in
Overall Height
5 in
Wire Size Max
#18 AWG
Wire Lead Length
6 in; 152 mm
Stem Thread Size
1/2"-14
Stem Diameter
1/2 in

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Includes
Lock Nut, Washer Gasket
Description/Special Features
Built-In Delay to Prevent Unwanted OFF Switching
Contact Form
SPST
Enclosure Type
Raintight
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Standards
cCSAus, California Title 20, UL Listed
Tungsten Load Ratings
15 A, 3100-4150 W
Photocontrol Sensor Location
Side
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting
Applications
Outdoor Lighting Control
Photocontrol Switch Type
Mechanical Bimetal
Activation On
1 to 5 fc
Wiring Option
Wire leads
Expected Lifetime Operations
3650
Activation Off
3 to 15 fc
Photocontrol Type
Thermal
UL Certification
UL
Fail Mode
ON
Input Voltage Ranges
208-277 VAC, 50/60 Hz
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Magnetic Ballast Load Ratings
8.3 A, 1700-2300 VA
CSA Certification
cCSAus
Photocontrol Photocell Type
Cadmium Sulfide
Expected Lifetime Years
5
Market
Commercial; Residential; Industrial
Photocontrol Style
Stem and Swivel Mount
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch
On Illumination - Minimum
1 fc
Off Illumination - Minimum
3 fc
Time Delay - Minimum
30 sec
Compatible Lighting
Fluorescent, HID, Incandescent
Wattage - Maximum
4,150 W
Time Delay - Maximum
90 sec
Body Color
Gray
On Illumination - Maximum
5 fc
AC Operating Voltage
208-277V AC
Incandescent Current - Maximum
15 A
Ballast Current - Maximum
8.3 A
Operating Temperature - Maximum
158 Degrees F
Stem Thread Type
NPSM
Operating Temperature - Minimum
-40 Degrees F
Indoor/Outdoor Usage
Outdoor
Off Illumination - Maximum
15 fc
Resistance Properties
UV Resistant
Mounting Style
Stem and Swivel

Description

Photocontrol, Mounting Stem and Swivel, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 5 1/2 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Lock Nut, Washer Gasket
