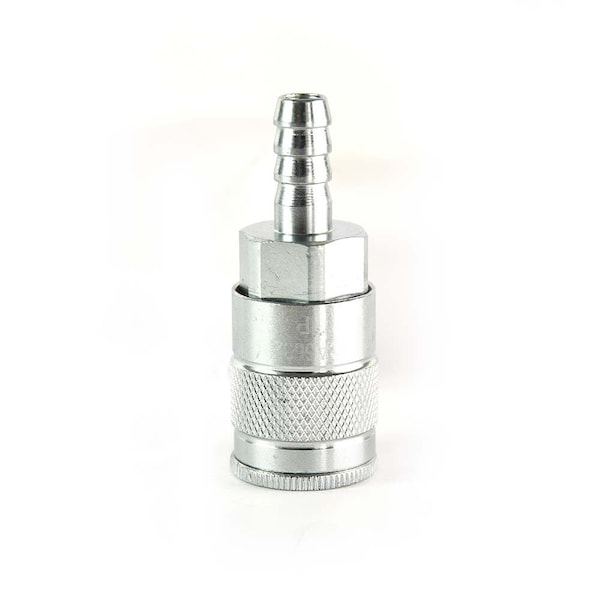

3/8 Inch Auto Steel Coupler x 3/8 Inch Barb (Silver Color), PK 6
- Mfr # CA663Z-D6
- Zoro # G105378452
Key Features
Specifications
Details
- MFR #
- CA663Z-D6
- Zoro #
- G105378452
- UPC #
- 791674018421
- Country of Origin
- China
- Item
- Automotive Coupler
- Interchange Type
- True-Flate Automotive
- Material
- Steel
- Connection Type
- Coupler x Barb
- Finish/Coating
- Zinc Plated
- Seal Material
- Buna-N (Nitrile)
- Color
- Silver
- Temp. Range
- -40 Degrees to 212 Degrees F
- Includes
- Stainless Steel Spring
- Type
- Automotive (True-flate)
- Bearing Material
- Stainless Steel
Dimensions
- Barb Size
- 3/8 in
- Body Size - Quick Connect Air Couplings
- 3/8"
Description
The INTERSTATE PNEUMATICS CA663Z-D6 is an automotive coupler designed as a quick-connect fitting that enables tool-free attachment of hoses to mating plugs or nipples. It features a coupler x barb connection type with a 3/8" body size and a 3/8 in barb size, suitable for use with pneumatic or fluid lines in vehicle maintenance settings. The coupler employs a ball-lock mechanism and adheres to the True-Flate Automotive interchange standard, is compatible with True-Flate Automotive interchange standard fittings (as specified by that interchange standard). Constructed primarily of steel with a zinc-plated finish, has a zinc-plated steel body coating suitable for corrosive environments and oil exposure, as applicable to the selected materials and finish. The sealing is done with Buna-N (Nitrile) material, is rated for operation within -40 to 212°F.
Key Features:
- Connection style: Coupler x Barb with 3/8" body and barb size
- Material: Steel body with zinc-plated coating
- Bearing Material: Stainless Steel for moving components
- Seal Material: Buna-N (Nitrile) for fluid-tight connections
- Temperature Range: -40 to 212°F
- Includes Stainless Steel Spring as part of the assembly
- Interchange Type: True-Flate Automotive standard
- Color: Silver finish
