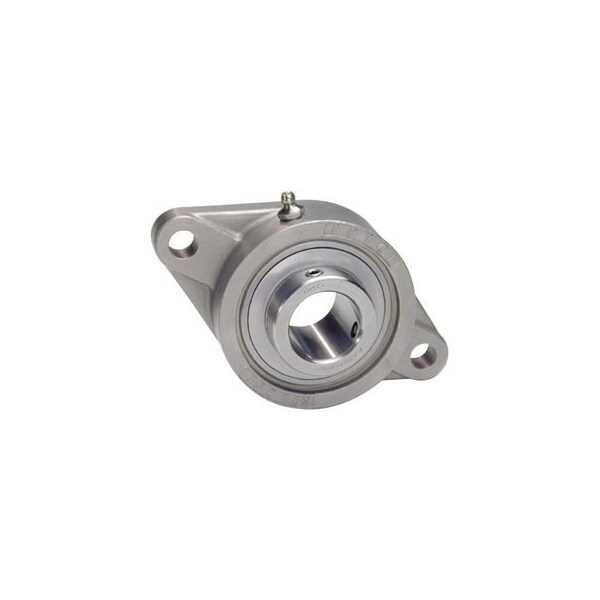

2-Bolt Flange Ball Bearing Mounted Unit

  • Mfr # SUCSFL208-24L3

  • Zoro # G423389192

product price:
$
465.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bore Diameter
1-1/2 in
Overall Width
51 mm
Series
SUCSFL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCSFL208-24L3
Zoro #
G423389192
UPC #
080067573139
Country of Origin
China
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Series
SUCSFL
Lubricant Material
H-1 Food Grade Grease
Closure
Double Sealed
Temp. Range
250 Degrees F Max
Item
2 Bolt Flange Bearing
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
System of Measurement
Inch
Maximum Temperature
250 Degrees F
For Environment
Food and Beverage
Self Lubricating Bearing
No
Bearing Insert Material
Stainless Steel
Internal Clearance
CN
Static Radial Load Capacity
3,300 lbf
Maximum Speed
3,750 RPM Grease
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
Minimum Temperature
-10 Degrees F
Included Bearing
SUC208-24L3
Load Direction
Radial
Seal Type
Triple Lip
Lubrication Openings
Grease Fitting
Features
Standard Duty
Resistance Properties
Corrosion-Resistant
Housing Type
Rhombus
Standards
AFBMA
Expansion Type
Fixed
Includes Bearing Cap
Bearing Cap Not Included
Split Housing
Not Split
Dynamic Load Capacity
5,660 lbf
Bearing Lubrication
Relubricateable
Bore Type
Cylindrical
Number of Rows
1

Description

Flange Mount Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC208-24L3, Lubricant Material H-1 Food Grade Grease, Maximum Speed 3,750 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F
