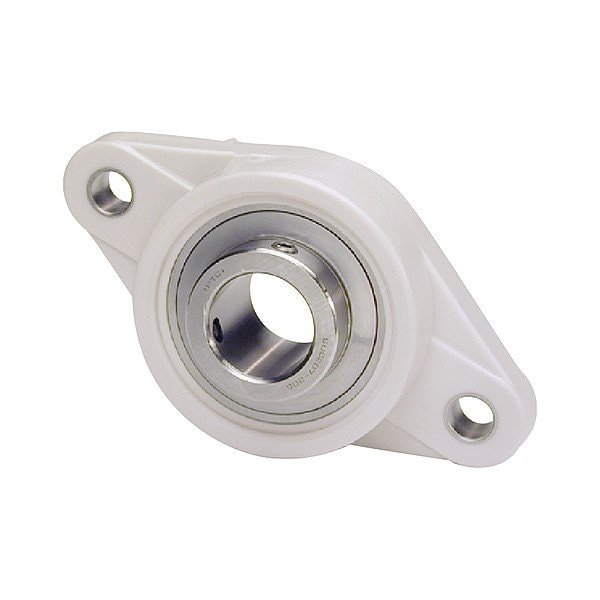

2 Holes, Flange Bracket Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/8 in Dia, PBT Plastic, Set Screw
Mfr # SUCTFL206-18 IP69K
Zoro # G015628142
product price:Â
$
228.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCTFL206-18 IP69K
- Zoro #
- G015628142
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 1-1/8 in
- Mount Hole Center-to-Center Length
- 4-19/32 in
- Overall Length
- 5-13/16 in
- Overall Width
- 1-39/64 in
- Overall Height
- 3-5/32 in
- Flange Thickness
- 1-7/32 in
- Center Height
- 1-9/16 in
- Inner Ring Width
- 1.5 in
- Bore Diameter Tolerance
- -0.0005 in
- Mount Hole Size
- 7/16 in
- Mounting Bolt Size
- 3/8, M10
- Mount Hole Center-to-Center Height
- 4 19/32 in
- Back Side to Center Width
- 0.626 in
- Wire Rope Length
- 5 13/16 in
- Bolt Circle Diameter
- 11 mm
- Length
- 5 13/16 in
Description
Flange Mount Bearing, Back Side to Center Width 0.626 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/8 in, Bore Type Cylindrical, Center Height 1 9/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Rhombus, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 450 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -10 Degrees F
