Shop IPTCI

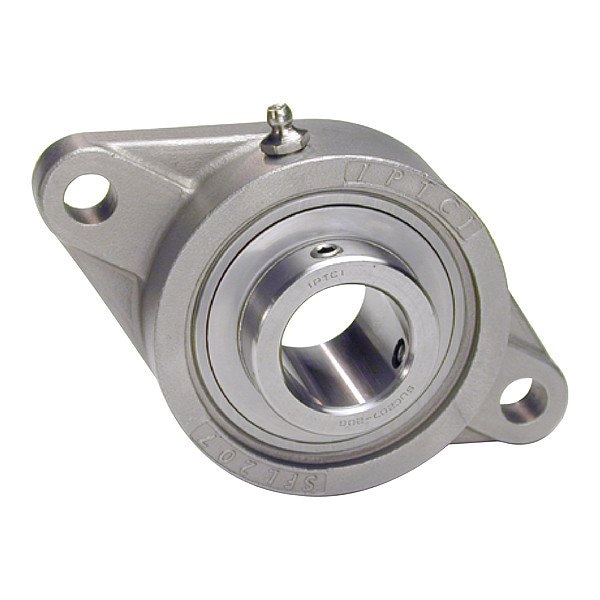

2 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-3/16 in Dia, Stainless Steel, Set Screw

  • Mfr # SUCSFL206-19
  • Zoro # G615628115
product price:
$
316.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCSFL206-19
Zoro #
G615628115
UPC #
-
Country of Origin
China
System of Measurement
Inch
Item
Flange Mount Bearing
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Stainless Steel
Bearing Insert Material
Stainless Steel
Seal Material
Silicone
Includes
Grease Zerk
Lubricant Material
H-1 Food Grade Grease
Rolling Element Rows
1
Housing Material Grade
AISI 52100
Included Bearing
Ball
Bearing Material Grade
AISI 52100
Maximum Speed
5,000 RPM
Maximum Temperature
210 Degrees F
Split Housing
Not Split
Includes Mounting Hardware
Yes
Maximum Misalignment Angle
45 Degrees
Closure
Double Sealed
Self Lubricating Bearing
No
Minimum Temperature
-10 Degrees F
Lubrication Openings
Grease Fitting
Bore Type
Cylindrical
Temp. Range
250 Degrees F Max
Series
SUCSFL
Static Radial Load Capacity
2,020 lbf
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
Internal Clearance
CN
For Environment
Food and Beverage
Dynamic Load Capacity
3,710 lbf
Resistance Properties
Corrosion-Resistant
Includes Bearing Cap
Bearing Cap Not Included
Bearing Lubrication
Relubricateable
Number of Rows
1
Features
Standard Duty
Load Direction
Radial
Expansion Type
Fixed
Standards
AFBMA
Seal Type
B-Type

Description

Flange Mount Bearing, Back Side to Center Width 0.626 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 9/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 5,000 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -10 Degrees F
