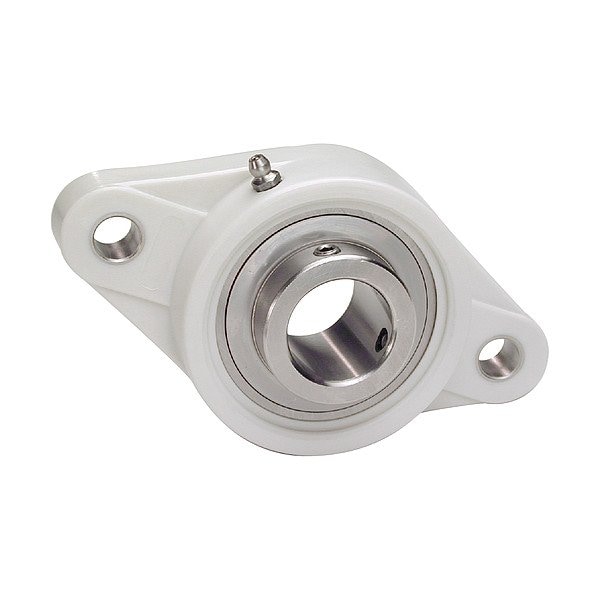

2 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 40 mm Dia, PBT Plastic, Set Screw
Mfr # SUCTFL208-40MM IP69K
Zoro # G415627981
product price:Â
$
329.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCTFL208-40MM IP69K
- Zoro #
- G415627981
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 40 mm
- Mount Hole Center-to-Center Length
- 143.7 mm
- Overall Length
- 175 mm
- Overall Width
- 52 mm
- Overall Height
- 100 mm
- Flange Thickness
- 20 mm
- Center Height
- 50 mm
- Inner Ring Width
- 49.2 mm
- Mount Hole Size
- 14 mm
- Back Side to Center Width
- 19 mm
- Mount Hole Center-to-Center Height
- 144 mm
- Mounting Bolt Size
- 1/2, M14
- Wire Rope Length
- 175 mm
- Bolt Circle Diameter
- 14 mm
- Length
- 175 mm
Description
Flange Mount Bearing, Back Side to Center Width 19 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 40 mm, Bore Type Cylindrical, Center Height 50 mm, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Rhombus, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 375 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -10 Degrees F
