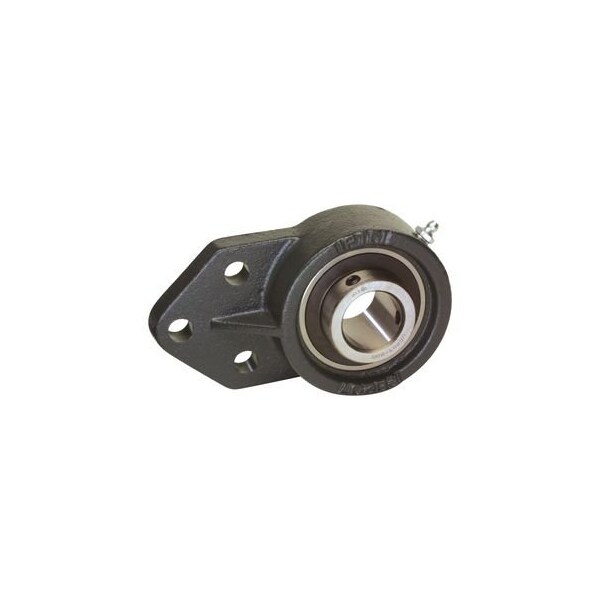

3-Bolt Flange Ball Bearing Mounted Unit
Mfr # UCFB210-32
Zoro # G023388052
product price:Â
$
112.99
/ea
Free Shipping & Returns
Key Features
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bore Diameter
2 in
Overall Width
55 mm
Closure
Double Sealed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UCFB210-32
- Zoro #
- G023388052
- UPC #
- 080067571835
- Country of Origin
- China
Dimensions
- Bore Diameter
- 2 in
- Overall Width
- 55 mm
- Overall Height
- 191 mm
- Mount Hole Center-to-Center Length
- 2 3/4 in
- Bolt Circle Diameter
- 13.1 mm
- Mounting Bolt Size
- 7/16, M12
- Center Height
- 74.6 mm
- Inner Ring Width
- 2.031 in
- Flange Thickness
- 13 mm
- Overall Length
- 118 mm
- Length
- 118 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Center Height 74.6 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Triangular, Included Bearing UC210-32, Lubricant Material NLGI #2 Equivalent, Maximum Speed 3,300 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable, Number of Mount Holes 3
