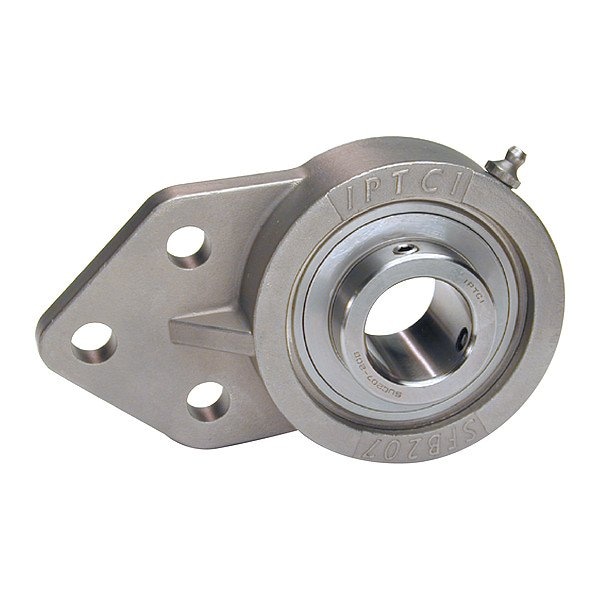

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Stainless Steel, Set Screw
Mfr # SUCSFB205-25 MM CAP READY
Zoro # G312006551
product price:Â
$
225.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Flange Bracket
Number of Mount Holes
3
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SUCSFB205-25 MM CAP READY
- Zoro #
- G312006551
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 25 mm
- Mount Hole Center-to-Center Length
- 41.3 mm
- Overall Length
- 70 mm
- Overall Width
- 41 mm
- Overall Height
- 121 mm
- Flange Thickness
- 9.5 mm
- Mounting Bolt Size
- 5/16, M8
- Inner Ring Width
- 34 mm
- Back Side to Center Width
- 17 mm
- Mount Hole Size
- 9.9 mm
- Mount Hole Center-to-Center Height
- 28.6 mm
- Wire Rope Length
- 70 mm
- Bolt Circle Diameter
- 9.9 mm
- Center Height
- 46 mm
- Length
- 70 mm
Description
Flange Mount Bearing, Back Side to Center Width 17 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Center Height 46 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Off-Set Triangular, Included Bearing SUC 205, Lubricant Material Mobil FM222, Maximum Speed 585 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -10 Degrees F, Mount Hole Center-to-Center Height 28.6 mm
