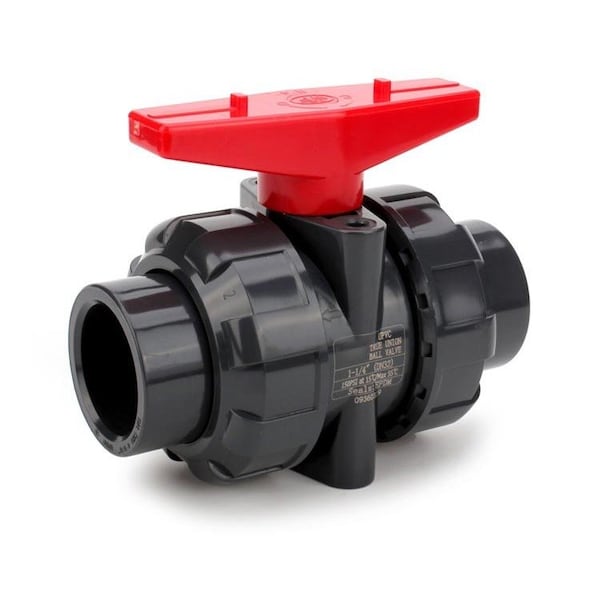

Aquagation PVC True Union Ball Valve - EPDM O-Rings - ANSI - Socket x Socket - 1-1/2-Inch

  • Mfr # WAQU1415
  • Zoro # G624998742
product price:
$
60.95
/ea

Key Features

Handle Height
5.04 in
Temp. Range
32 to 131°F
Seat Material
PTFE
Overall Length
6.34 in
Color - Valve Handle
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WAQU1415
Zoro #
G624998742
UPC #
-
Country of Origin
China
Temp. Range
32 to 131°F
Seat Material
PTFE
Color - Valve Handle
Red
Standards
ANSI
Max. Pressure
150 psi @ 73°F
Handle Material
ABS
Connection Type
Socket x Socket
Color - Valve Body
Dark Gray
Item
True Union Ball Valve
Body Material
PVC

Dimensions

Handle Height
5.04 in
Overall Length
6.34 in
Pipe Size
1-1/2 in

Description

Introducing the re-designed Aquagation PVC True Union Ball Valve with EPDM O-Rings, designed to meet ANSI standards. This valve comes standard with Socket x Socket end connections for easy installation and secure sealing. The durable PVC construction ensures long-lasting performance, making it ideal for a variety of applications including the installation of pumps, filters, drip irrigation, and more. The EPDM O-Rings provide a reliable seal, preventing leaks and ensuring smooth operation. Aquagation Advantage: - Materials meet drinking water standards - Smooth opening & closing with lower torque - 100% pure virgin material, CaCO3 (chalk) free - UV resistant powder added - 100% pressure testing before leaving the factory - Can be assembled with pneumatic/electric actuators Specifications: Size: 1-1/2-Inch Material: PVC Standard: ANSI Joint End: Socket x Socket Seat: PTFE O-Ring: EPDM Working Pressure: 150 PSI @ 73 degrees farenheit Operating Temperature: 0~55 degrees celsius Handle Color: Red Valve Body Color: Dark Gray Compatible with both Schedule 40 and Schedule 80 pipe and fittings
